Disassembly And Assembly: Notes

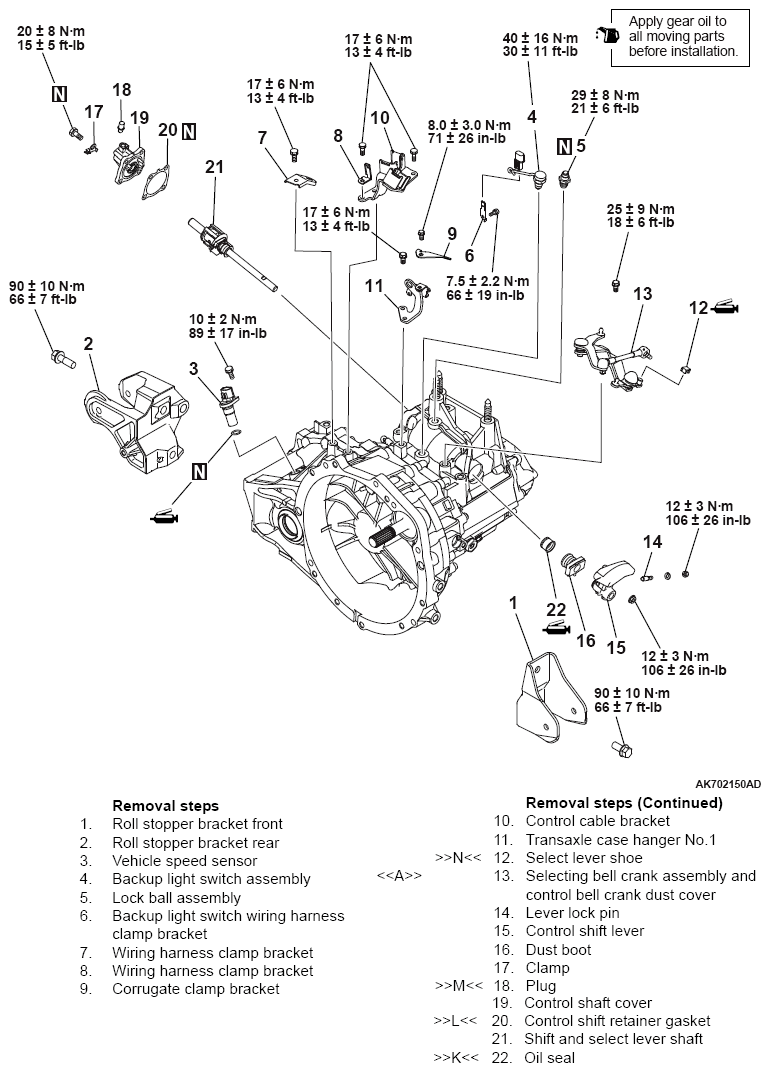

Fig 1: Disassembling/Assembling Transaxle Components With Torque Specifications
G10229853Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

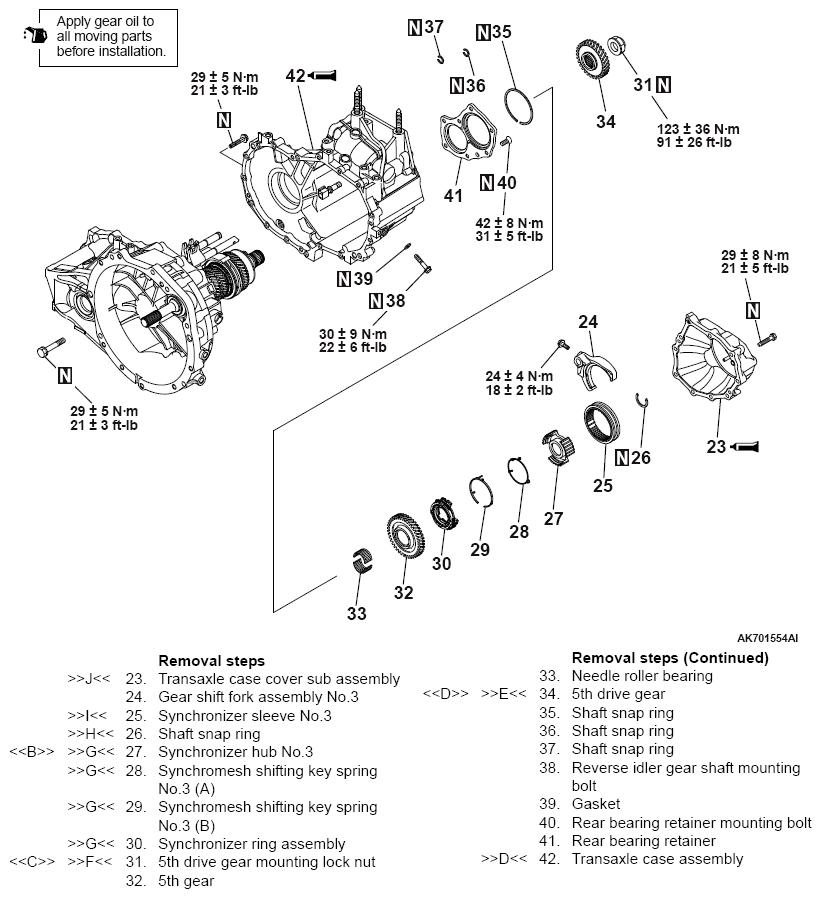

Fig 2: Identifying Transaxle Components With Torque Specifications
G10229854Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

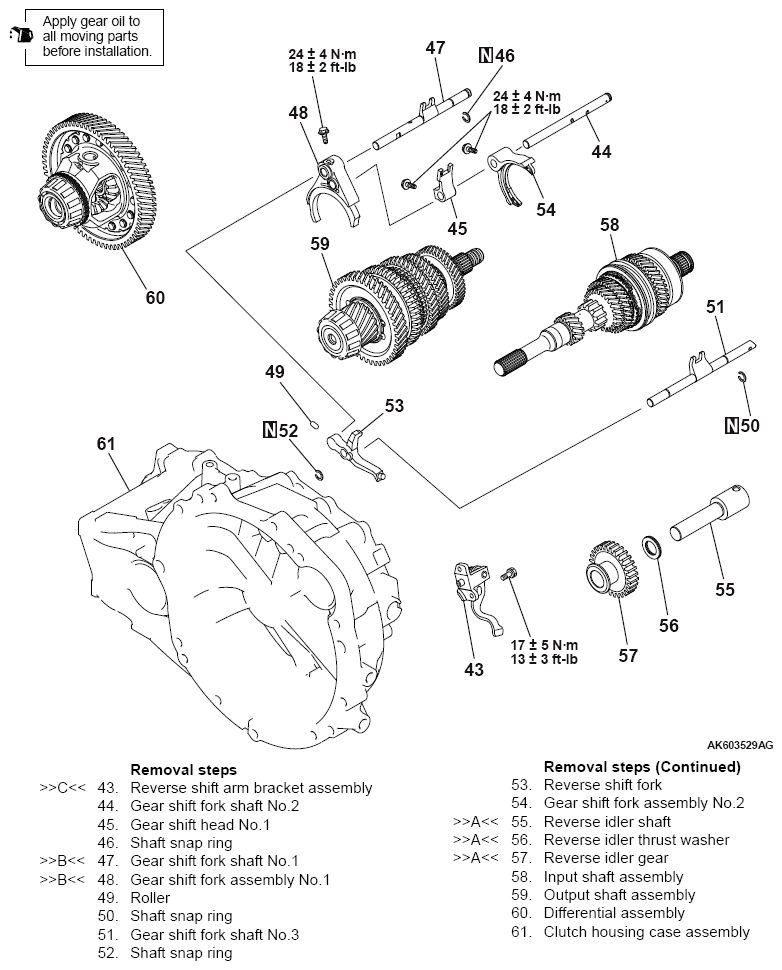

Fig 3: Identifying Transaxle Components With Torque Specifications
G10229855Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
