Engine Overhaul (2.0L Engine)
›
Throttle Body And EGR System
›
Removal And Installation
›
Notes
Removal And Installation: Notes

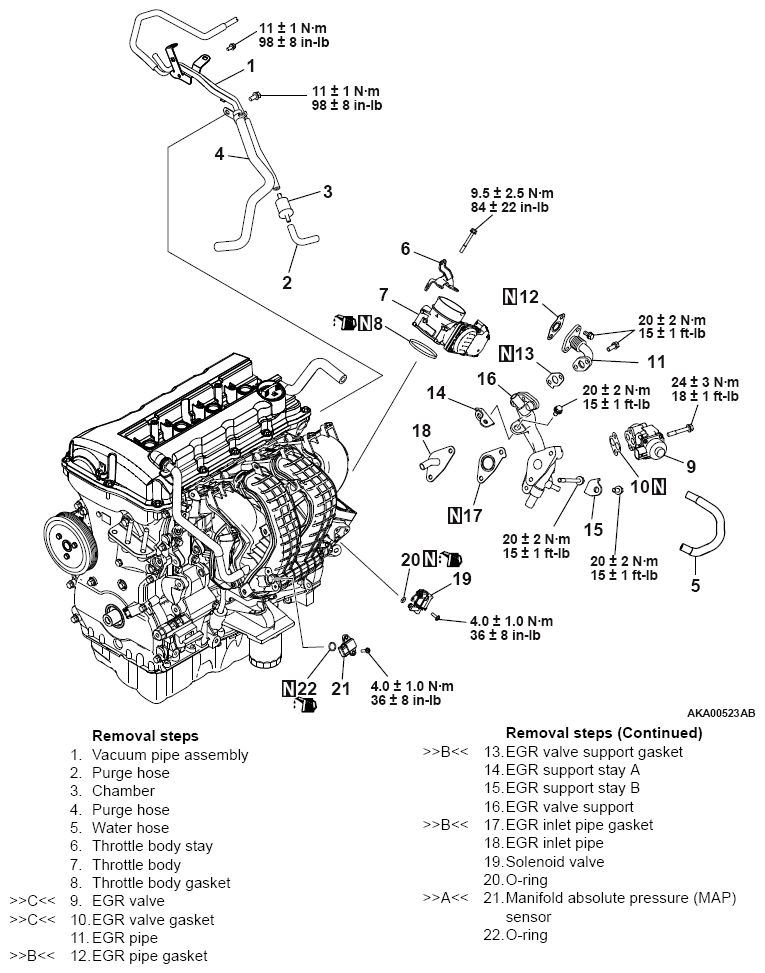

Fig 1: Removing/Installing Throttle Body And EGR System Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
