Removal And Installation: Notes

Fig 1: Instrument Center Panel Components With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

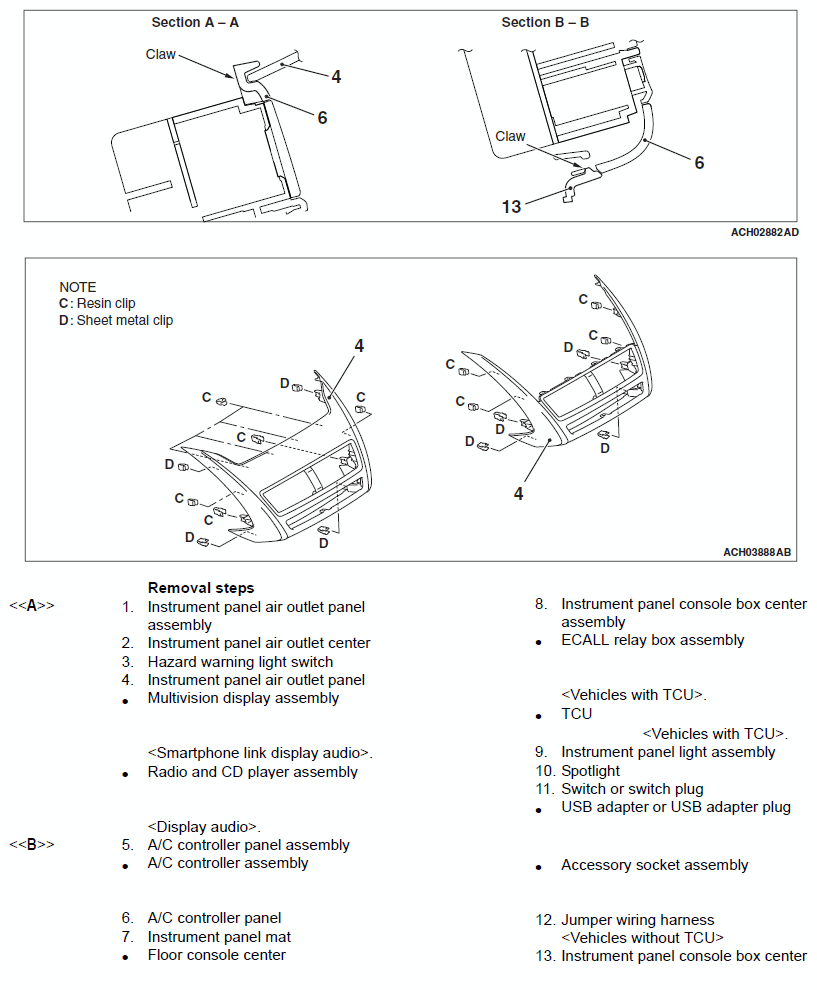

Fig 2: Instrument Center Panel Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover
