Removal And Installation: Notes

Pre-removal and post-installation operation

Liftgate Spoiler (Refer to REMOVAL AND INSTALLATION ).
Rear Wiper Blade and Arm Assembly Removal and Installation (Refer to REAR WIPER AND WASHER ).
Liftgate Trim Removal and Installation (Refer to LIFTGATE TRIM ).

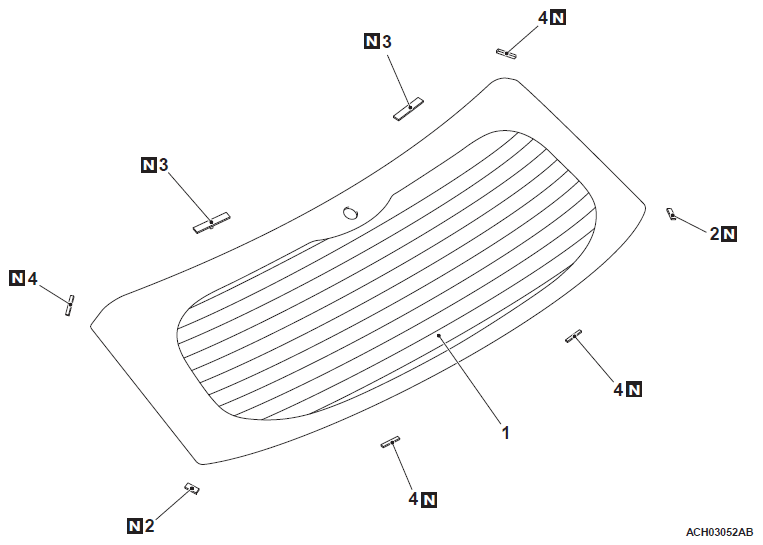

Fig 1: Liftgate Window Glass Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

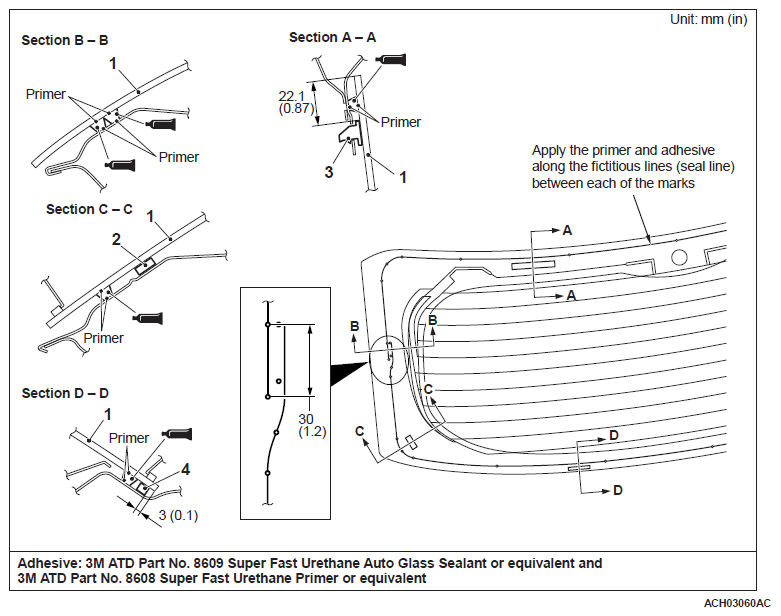

Fig 2: Liftgate Window Glass Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

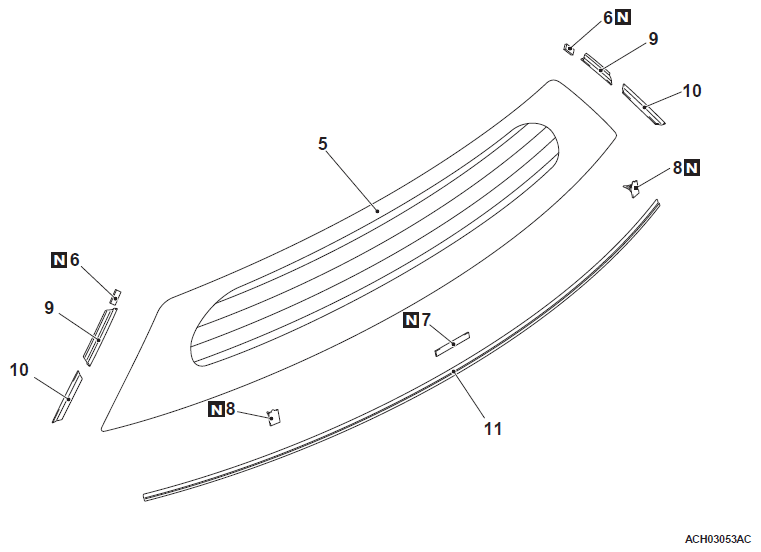

Fig 3: Liftgate Extra Window Glass Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

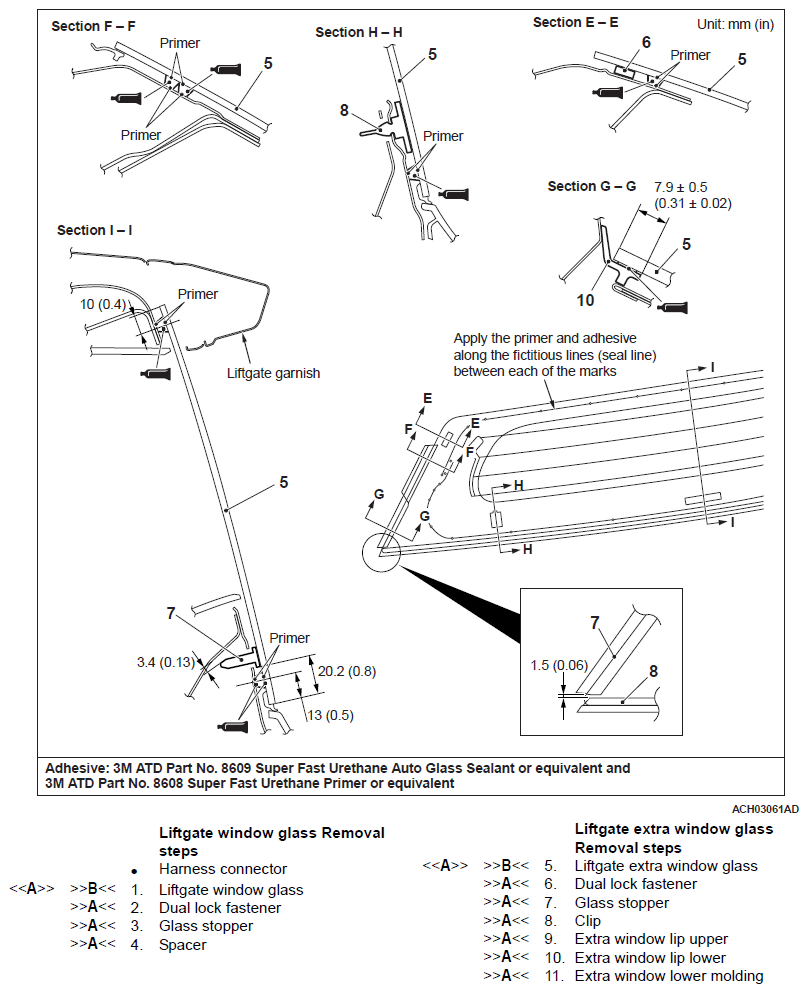

Fig 4: Liftgate Extra Window Glass Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
