Disassembly And Reassembly: Notes

CAUTION: As for the outboard joint assembly, only the outboard joint boot can be replaceable, and other parts cannot be disassembled.

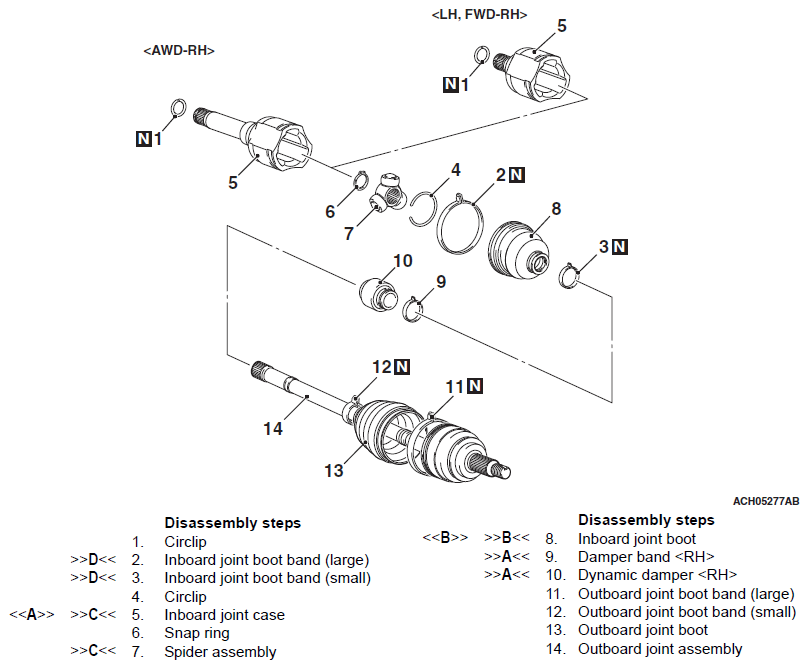

Fig 1: Disassembling/Reassembling Driveshaft Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
