Engine And Transaxle
Engine And Transaxle

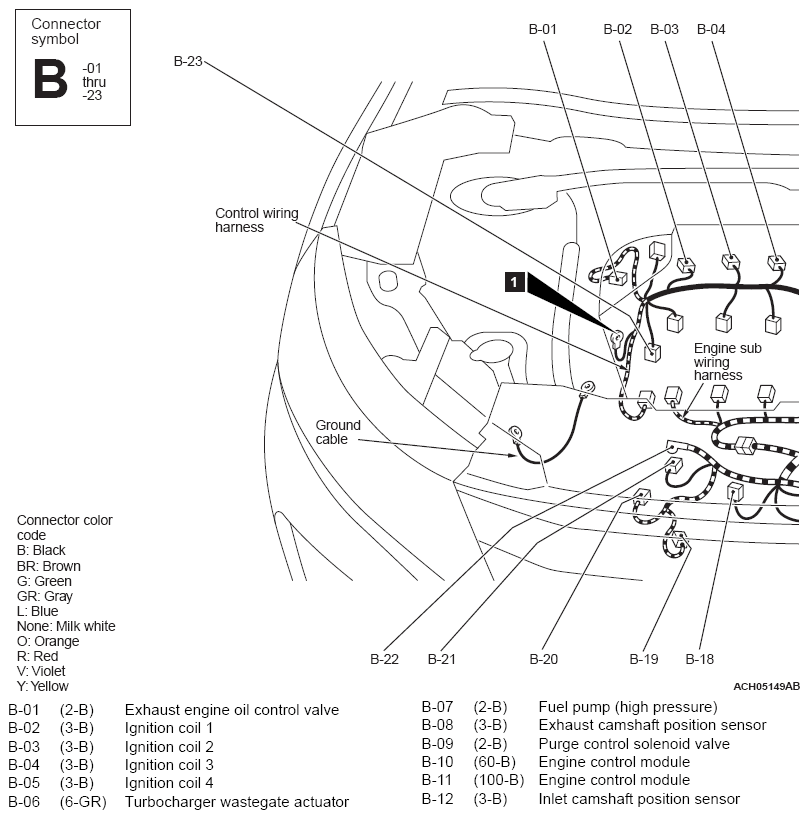

Fig 1: Engine And Transaxle Configuration Diagram (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

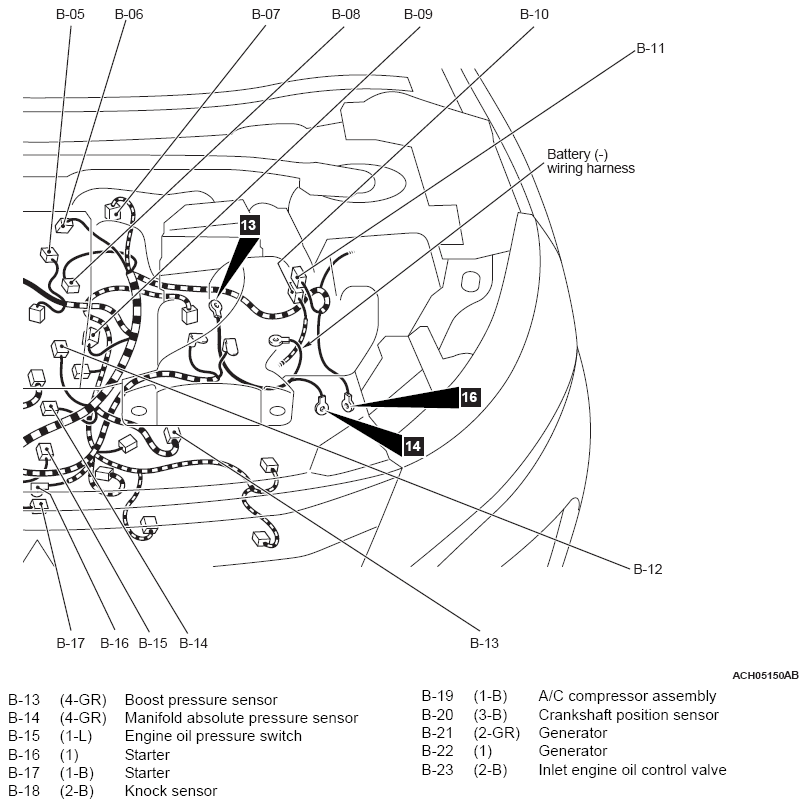

Fig 2: Engine And Transaxle Configuration Diagram (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

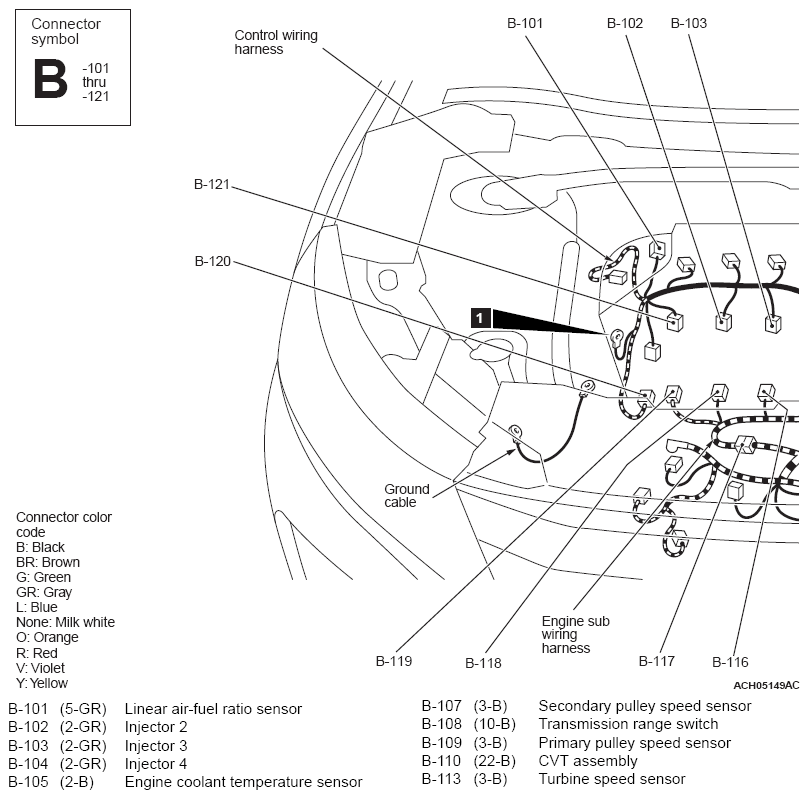

Fig 3: Engine And Transaxle Configuration Diagram (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

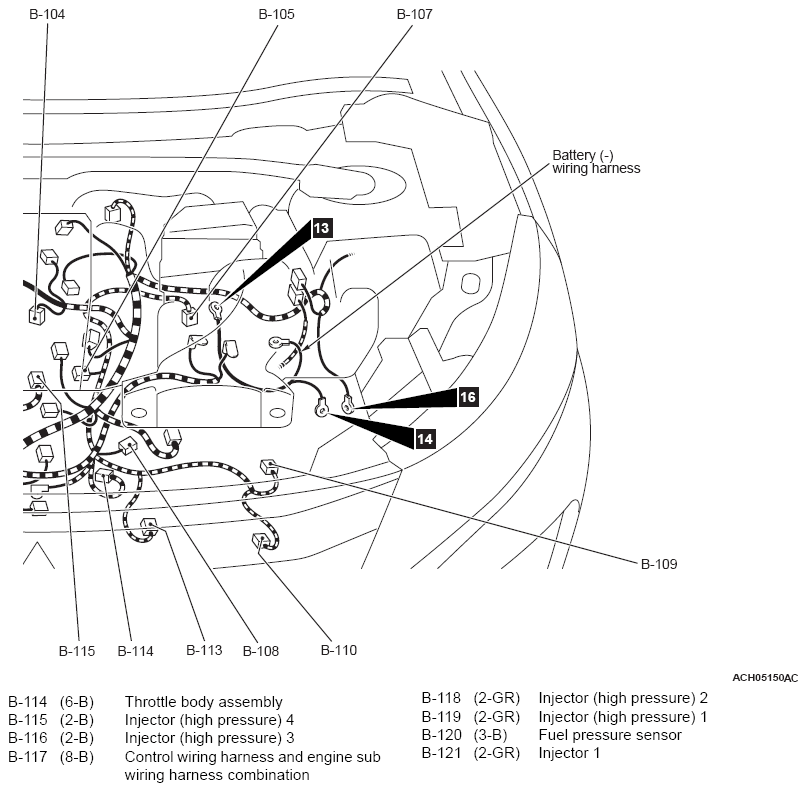

Fig 4: Engine And Transaxle Configuration Diagram (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
