Configuration Diagrams: Floor

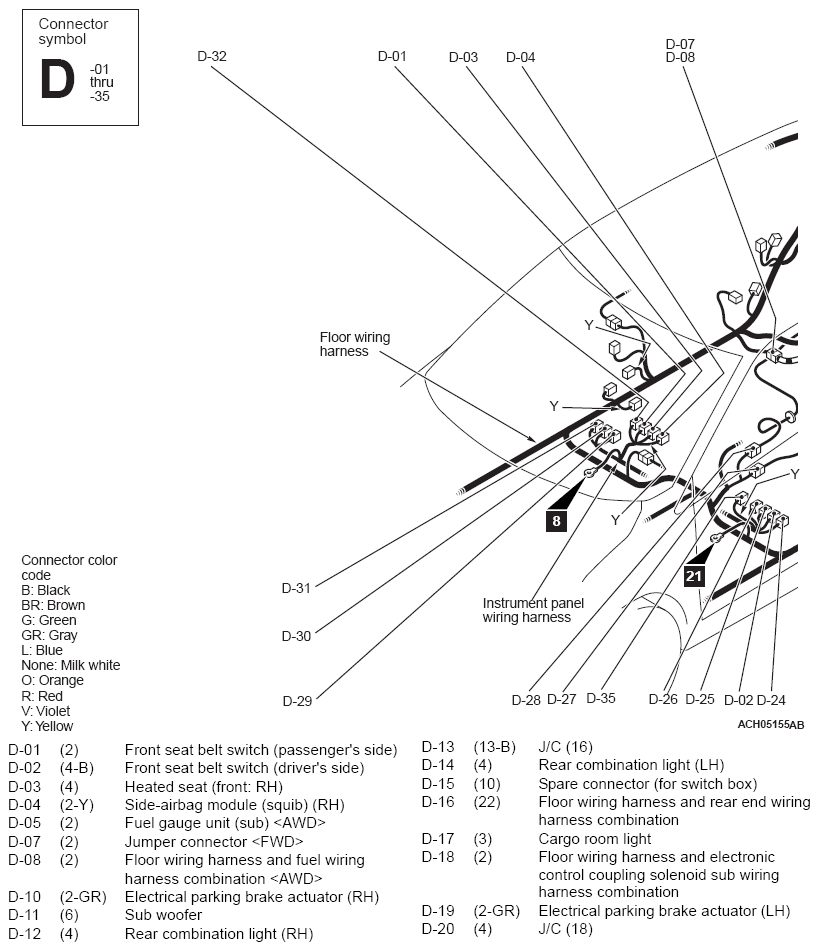

Fig 1: Floor Configuration Diagram (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

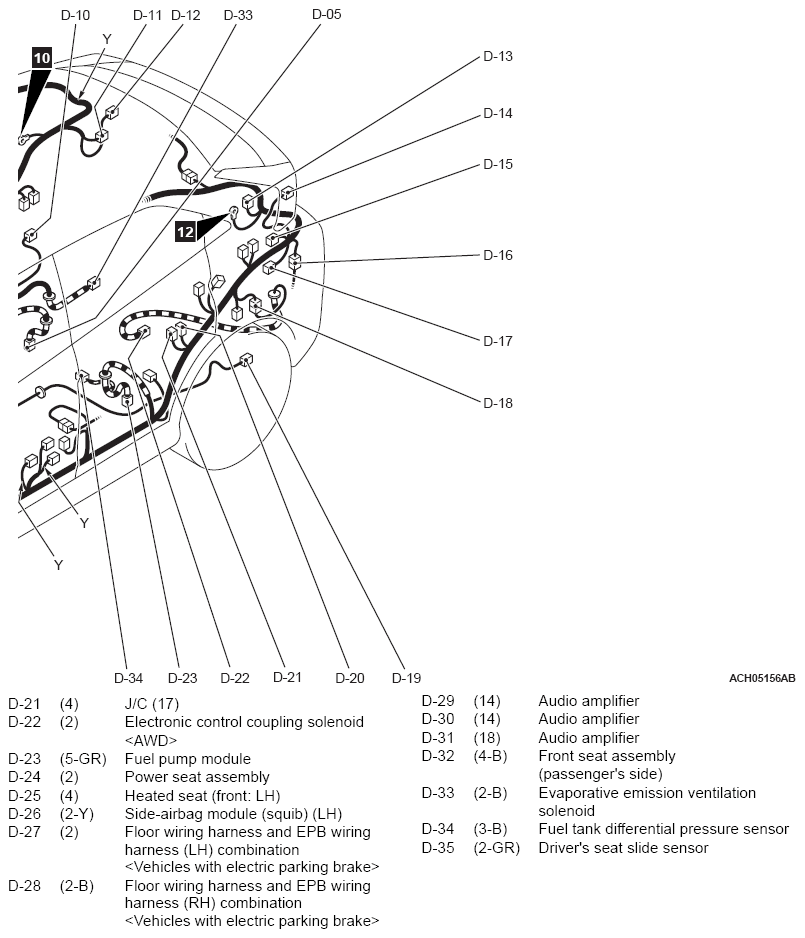

Fig 2: Floor Configuration Diagram (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

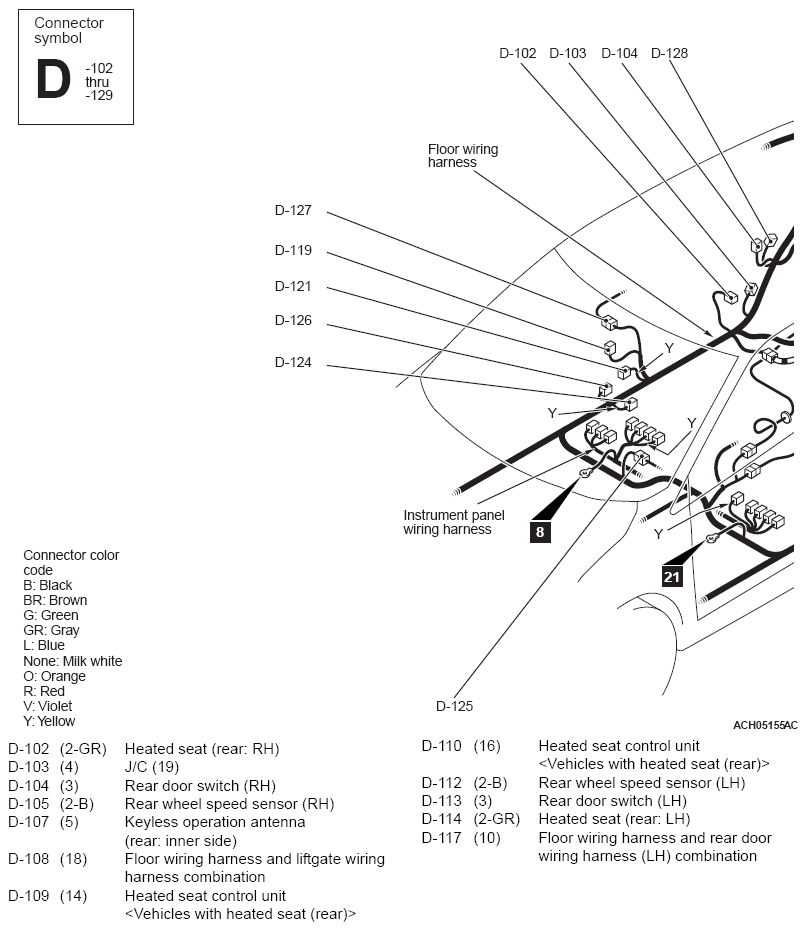

Fig 3: Floor Configuration Diagram (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

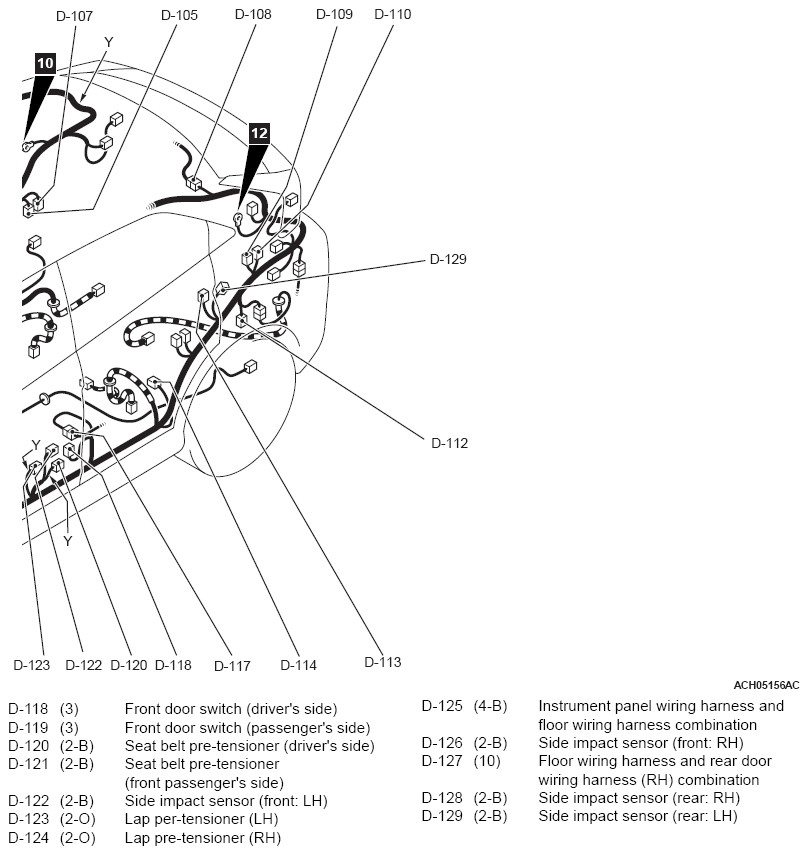

Fig 4: Floor Configuration Diagram (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
