Configuration Diagrams: Liftgate

CAUTION: Aluminum wires are partially used for the liftgate wiring harness.

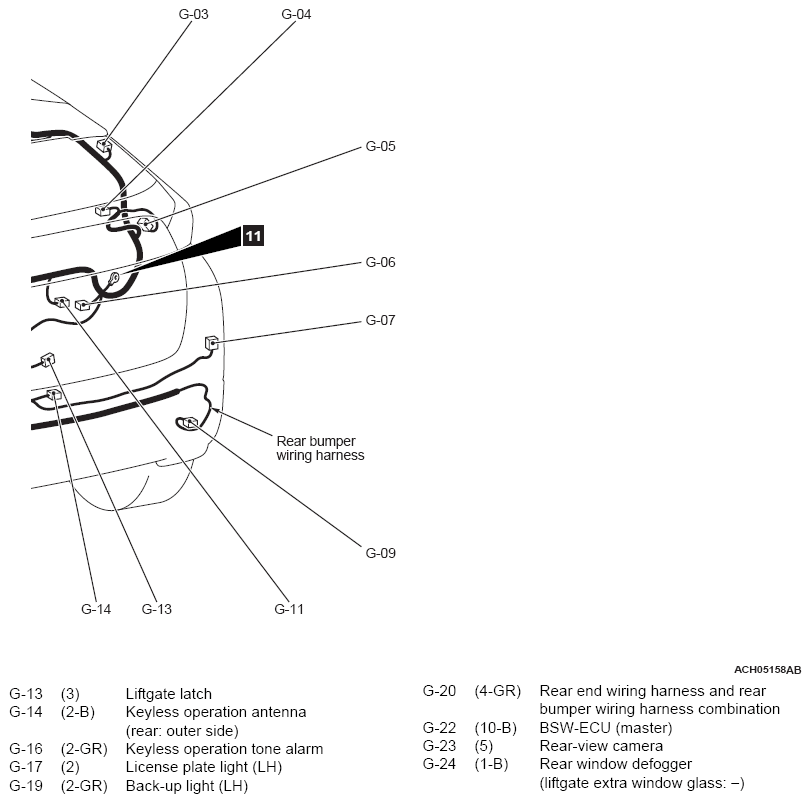

Fig 1: Liftgate Configuration Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

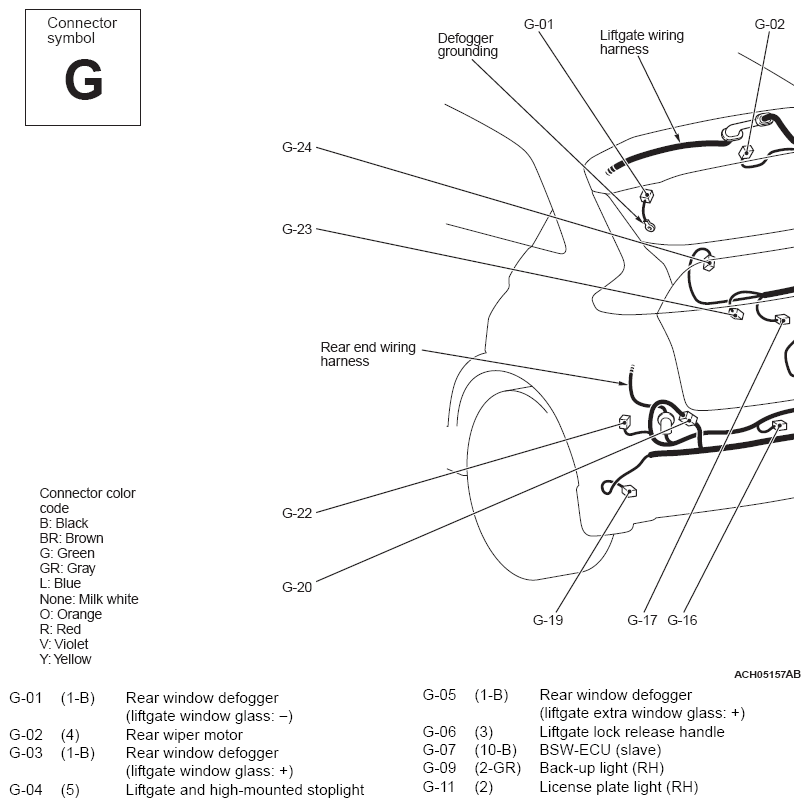

Fig 2: Liftgate Configuration Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
