Configuration Diagrams: Roof

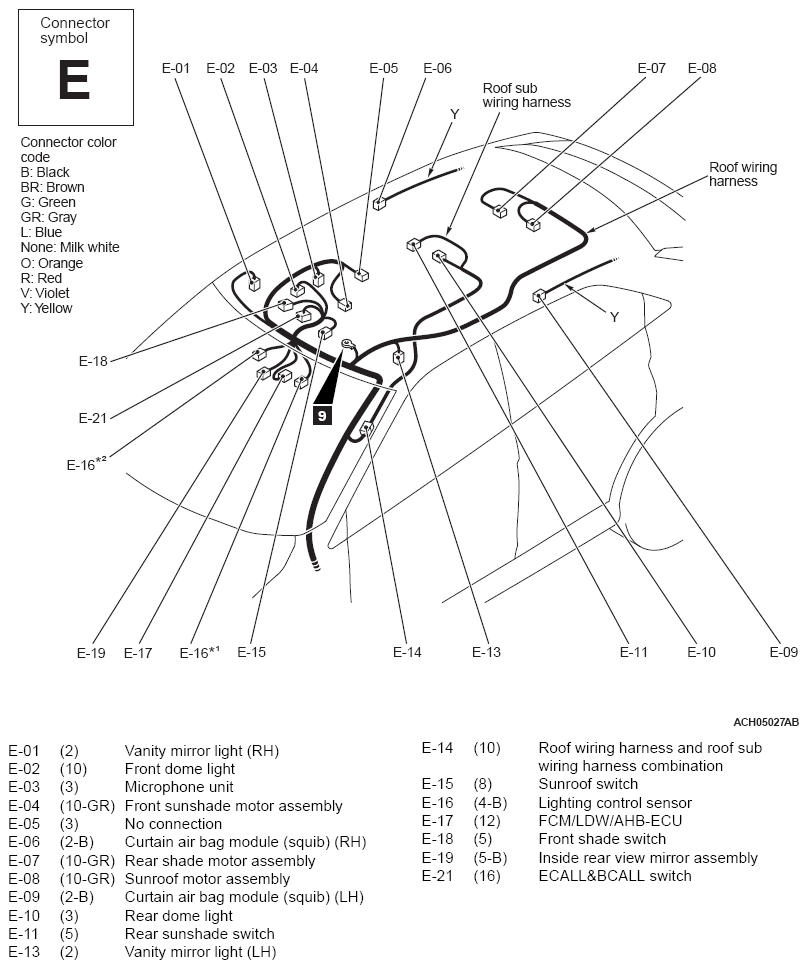

Fig 1: Roof Configuration Diagram

G12151573

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
