Splice Locations: Roof

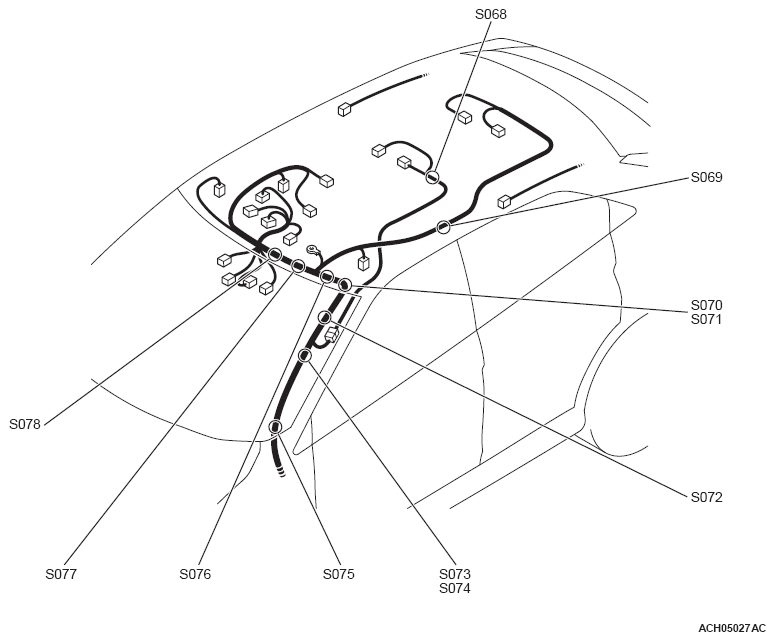

Fig 1: Roof Wiring Harness Connector Locations
G12151587Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
