Removal And Installation

Pre-removal Operation

Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to REMOVAL AND INSTALLATION ).
Generator and Others Belt Removal
(Refer to CRANKSHAFT PULLEY ).

Post-installation Operation

Generator and Others Belt Installation
(Refer to CRANKSHAFT PULLEY ).
Generator and Others Belt Tension Check
(Refer to GENERATOR AND OTHERS BELT TENSION CHECK ).
Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

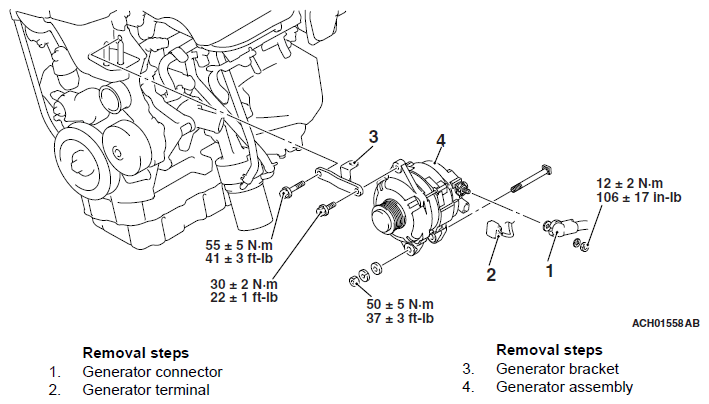

Fig 1: Generator Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
