Removal And Installation: Notes

CAUTION:

• When removing or installing the volume air flow sensor, be careful not to apply impact to the sensor.
• Do not reuse the volume air flow sensor that has been dropped.

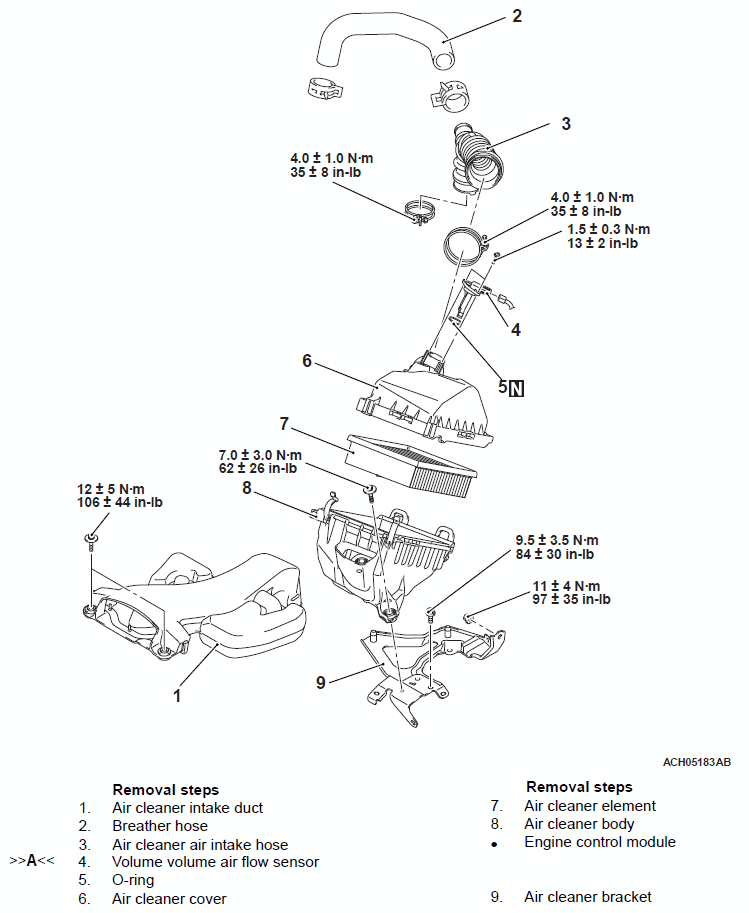

Fig 1: Air Cleaner Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
