Removal And Installation: Notes

Pre-removal Operation  Engine Room Under Cover Front A, B Removal (Refer to REMOVAL AND INSTALLATION ). Engine Coolant Draining (Refer to ENGINE COOLANT CHANGE ). Engine Oil Filter Removal (Refer to ENGINE OIL FILTER REPLACEMENT  ).

Post-installation Operation  Engine Oil Filter Installation (Refer to ENGINE OIL FILTER REPLACEMENT  ). Engine Coolant Refilling (Refer to ENGINE COOLANT CHANGE ). Engine Room Under Cover Front A, B Installation (Refer to REMOVAL AND INSTALLATION ).

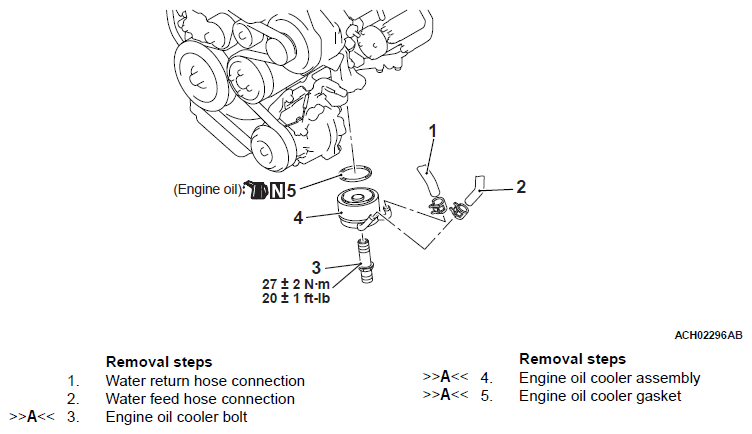

Fig 1: Engine Oil Cooler Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
