Removal And Installation: Notes

Pre-removal and post-installation operation

Engine Room Under Cover Front A, B Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

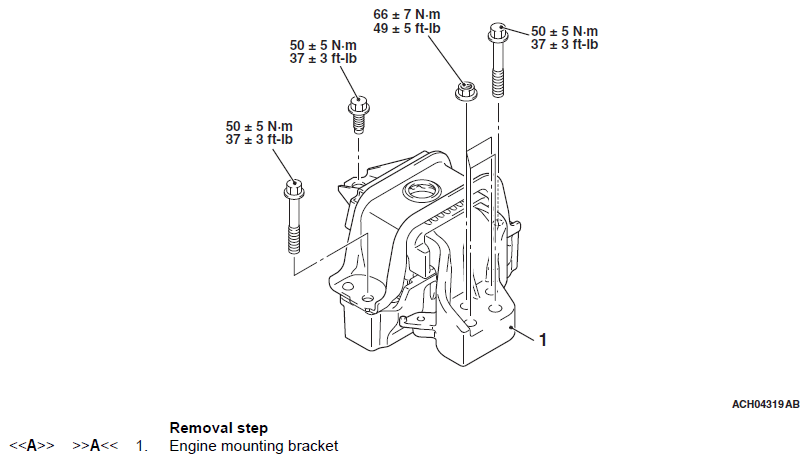

Fig 1: Engine Mounting Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
