Removal And Installation: Notes

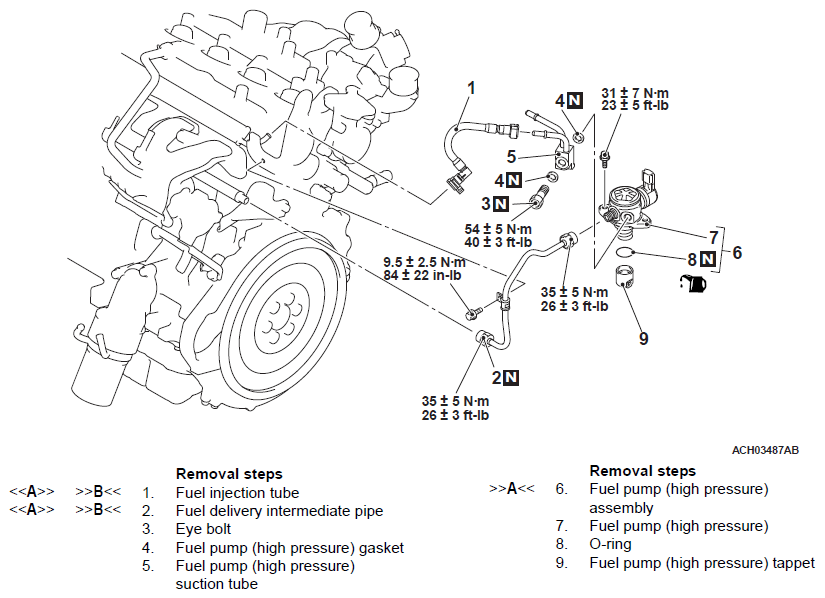

Fig 1: Fuel Pump (High Pressure) Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Do not remove the eye bolt, fuel pump (high pressure) gasket and fuel pump (high pressure) suction tube except during replacement.
