Removal And Installation: Notes

CAUTION: Do not install or remove the fuel rail and fuel injector assembly (high pressure) while holding the fuel pressure sensor.

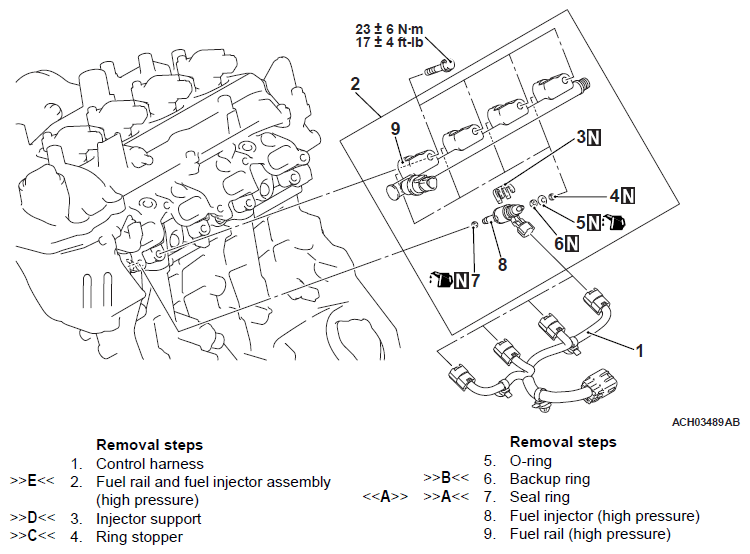

Fig 1: Injector (High Pressure) Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools :
