Timing Chain Case
›
Removal And Installation
Removal And Installation

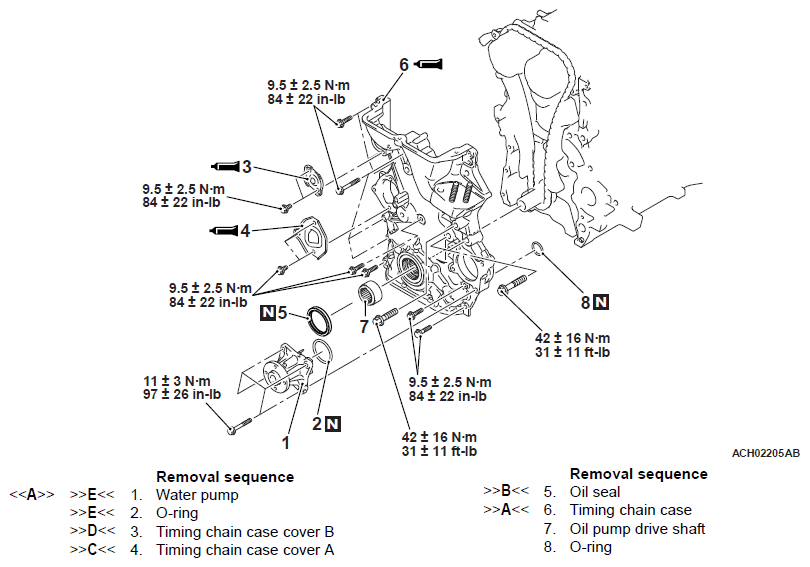

Fig 1: Timing Chain Case Component With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
