Notes
Removal And Installation: Notes

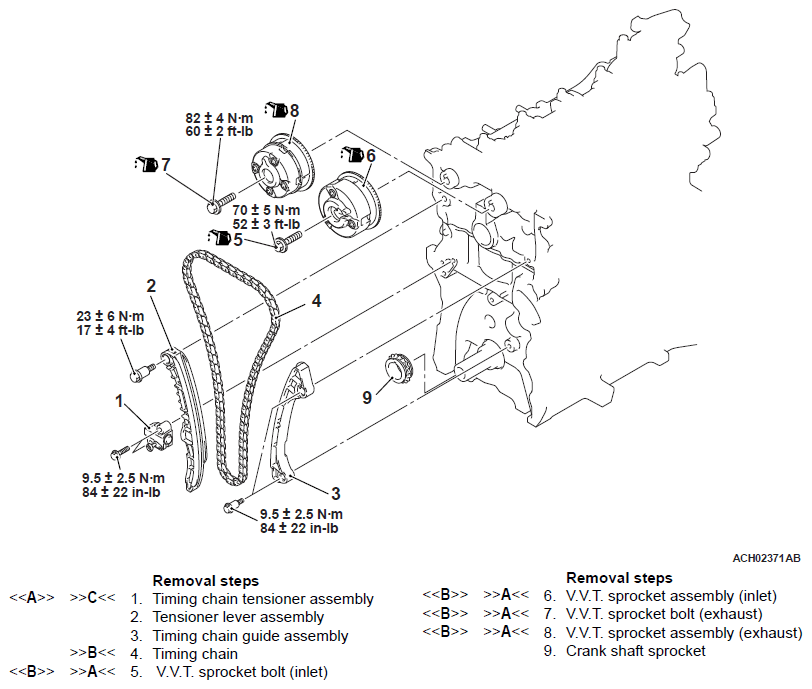

Fig 1: Timing Chain Component With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
