Removal And Installation

CAUTION:

When removing or installing the crank angle sensor, be careful not to apply impact to the sensor.
Do not reuse the crank angle sensor that has been dropped.

Pre-removal and Post-installation Operation

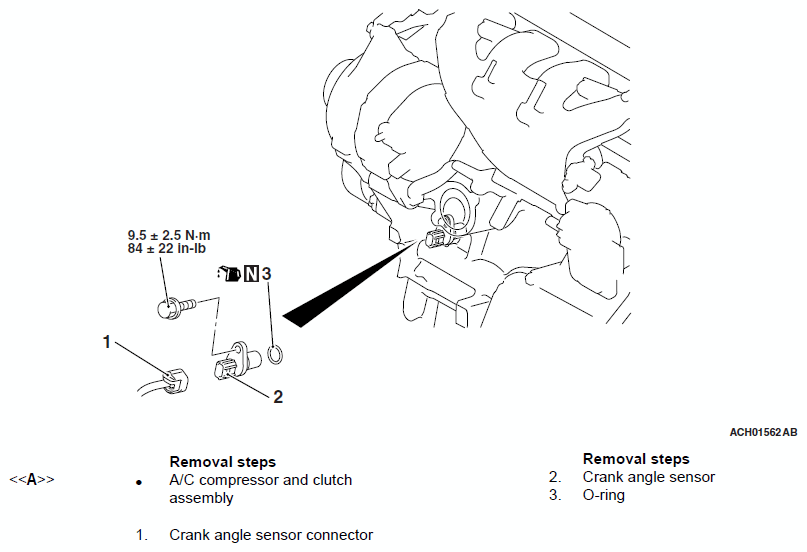

Fig 1: Crankshaft Position Sensor Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
