Removal And Installation

Pre-removal and Post-installation Operation

• Engine Cover Removal and Installation (Refer to ENGINE COVER ASSEMBLY ).
• Charge air cooler Outlet Air Pipe A Removal and Installation (Refer to CHARGE AIR COOLER ).
• Vacuum pipe Removal and Installation (Refer to TURBOCHARGER ASSEMBLY ).

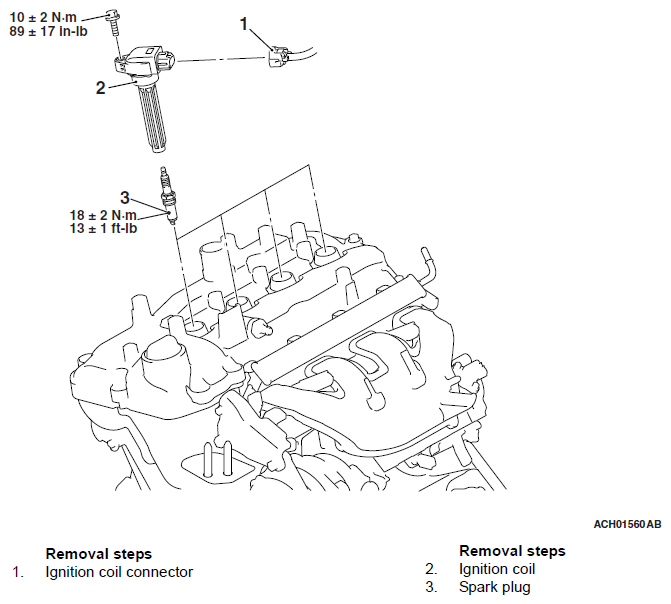

Fig 1: Ignition Coil Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
