Removal And Installation: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal Operation

Brake Fluid Draining

Post-installation Operation

Brake Fluid Refilling and Air Bleeding (Refer to CHECK VALVE OPERATION CHECK ).

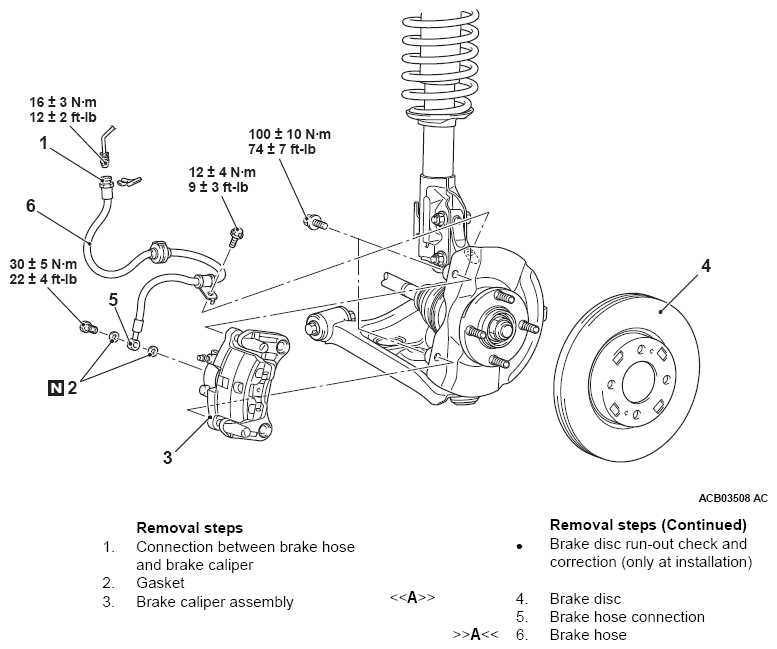

Fig 1: Front Disc Brake Assembly Components With Torque Specifications
G11278623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
