Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

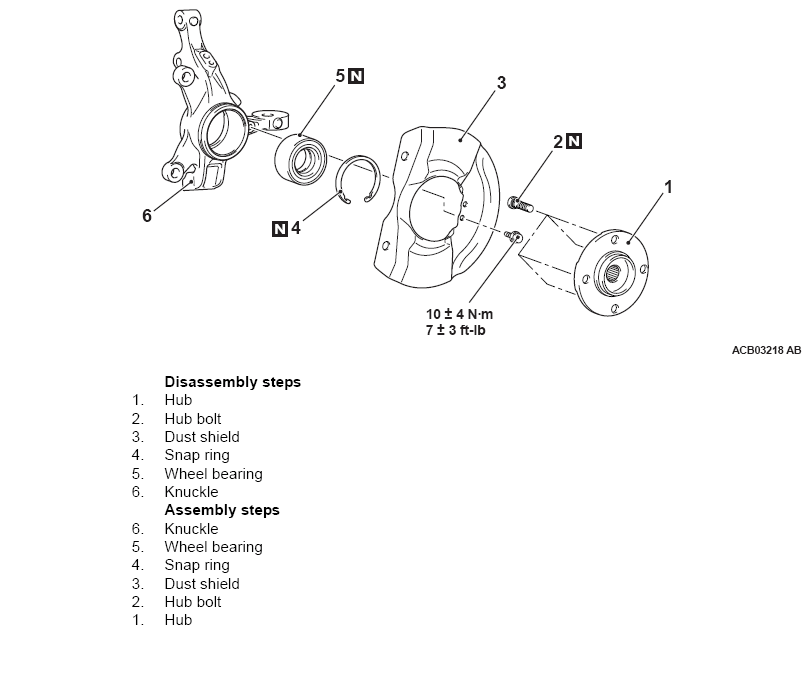

Fig 1: Front Axle Hub Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991017: Front Hub Remover and Installer
MB991355: Knuckle Arm Bridge
MB992250: Knuckle Arm Bridge attachment
MB992867: Front Hub Remover and Installer Spacer
MB991618: Hub Bolt Remover
MB991019: Spacer
MD998801: Remover
MB992254: Base
MD999547: Oil Seal Installer
MB990799: Ball Joint A Remover and Installer
MD998812: Installer Cap
MD998813: Installer 100
MD998815: Installer Adapter
MB990767: Front Hub and Flange Yoke Holder
MB990800: Ball Joint B Remover and Installer
MB991199: Oil Seal Installer
MB991000: Spacer
MB990326: Preload Socket
MB990685: Torque Wrench
