Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

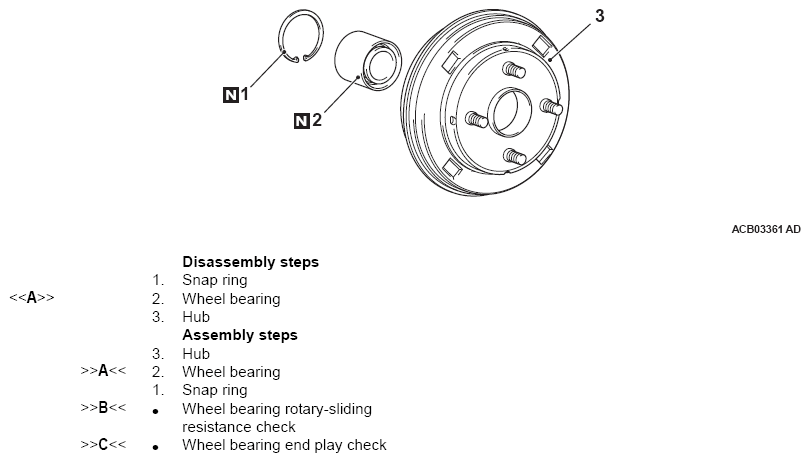

Fig 1: Rear Axle Hub Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991152: Dust cover installer
MB991389: Bush removal base
MD998717: Oil seal installer
MB991576: Base
