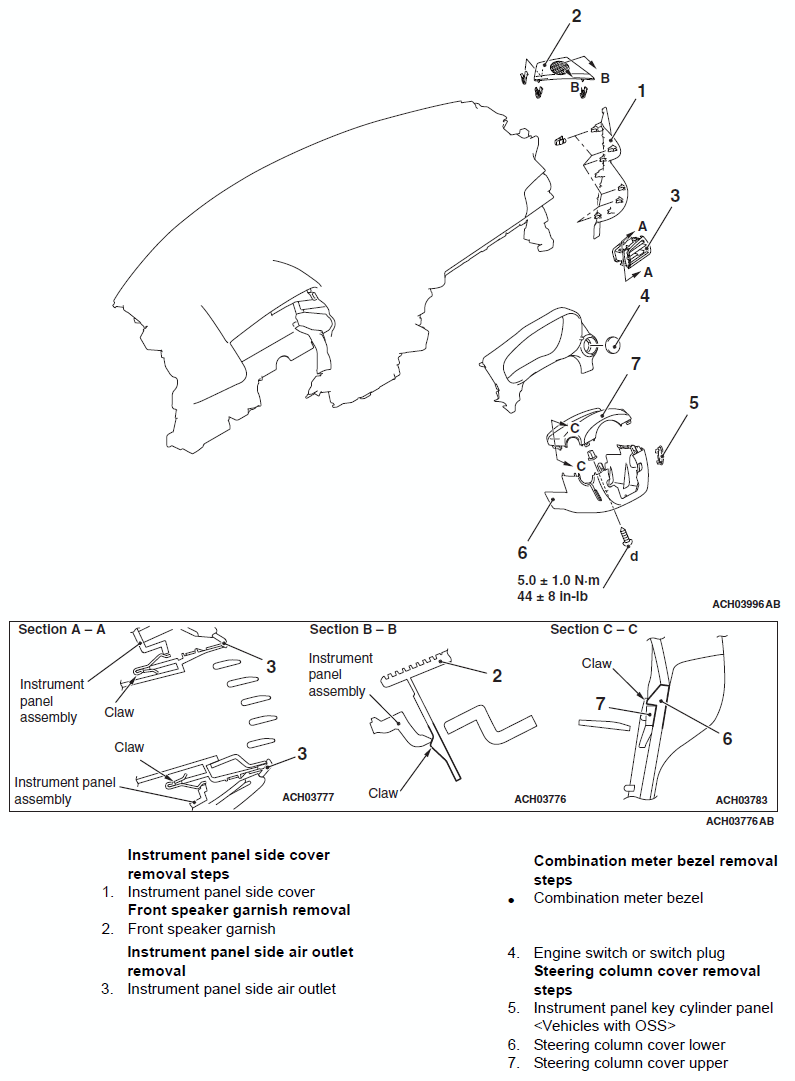

Removal And Installation

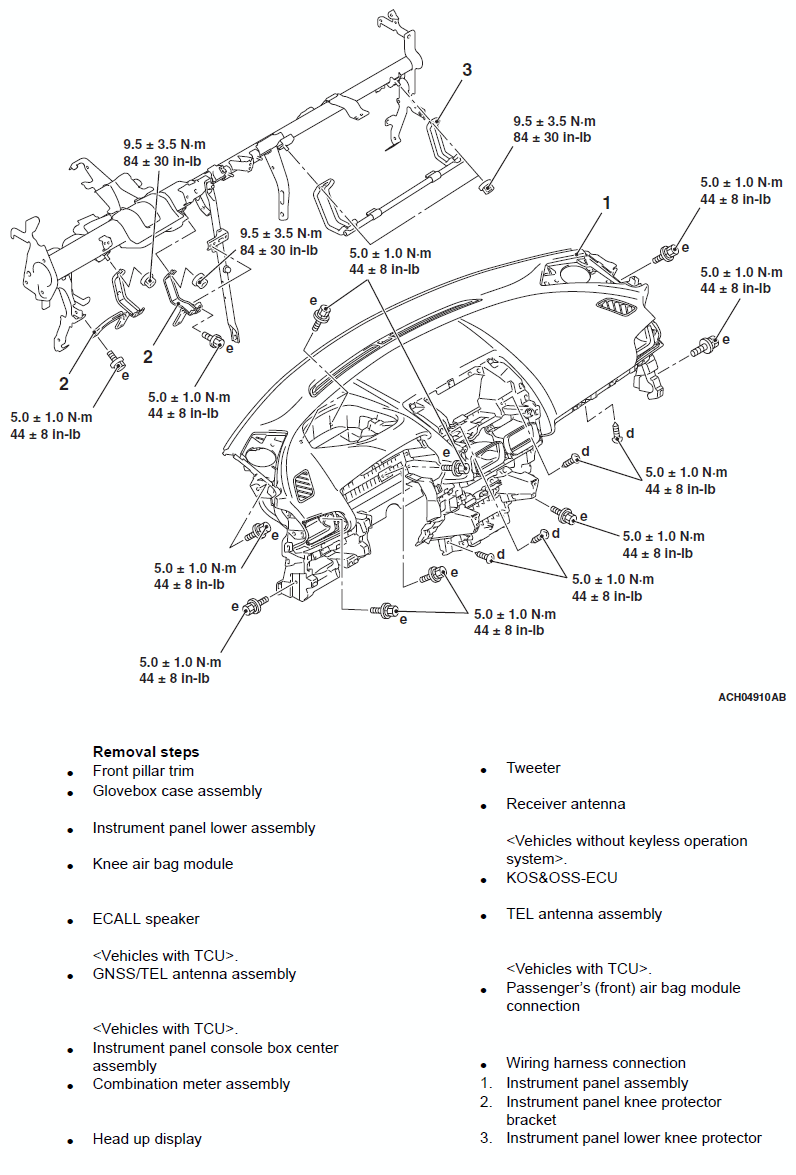

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."
| Name | Symbol | Size (D X L) mm | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 X 12 | - | |
| b | 5 X 16 | - | ||
| c | 5 X 12 | - | ||
| d | 5 X 16 | - | ||
| Washer assembly bolt | e | 6 X 16 | - |
D: Thread diameter, L: Effective thread length
CAUTION:
- Before removal and installation the SRS components, refer to SERVICE PRECAUTIONS , KNEE AIR BAG MODULE and PASSENGER'S (FRONT) AIR BAG MODULE .
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
