Disassembly And Reassembly: Notes

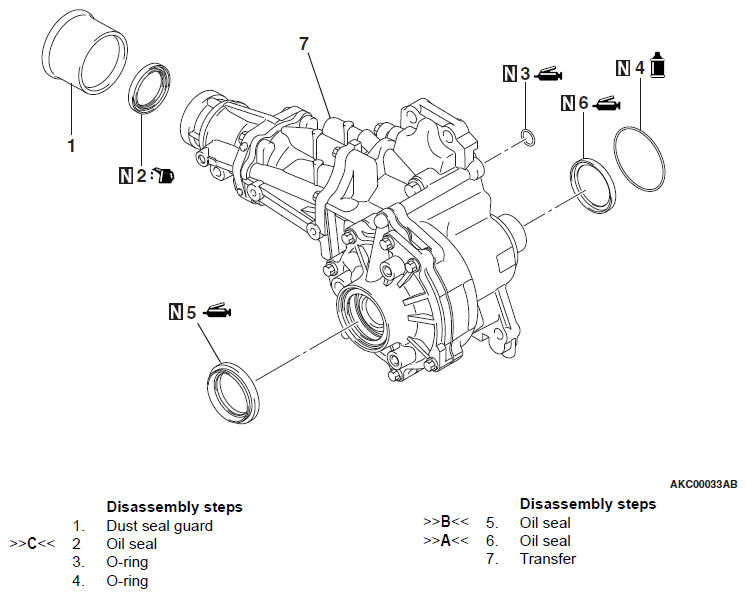

Fig 1: Disassembling And Reassembling Transfer Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MB990936: Installer adapter
• MB992075: Handle
• MB992142: Oil seal installer
• MB992154: Oil seal installer
• MD998812: Installer cap
