Mitsubishi
›
2018
›
Eclipse Cross SEL
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Instrument Lower Panel
›
Removal And Installation
Removal And Installation

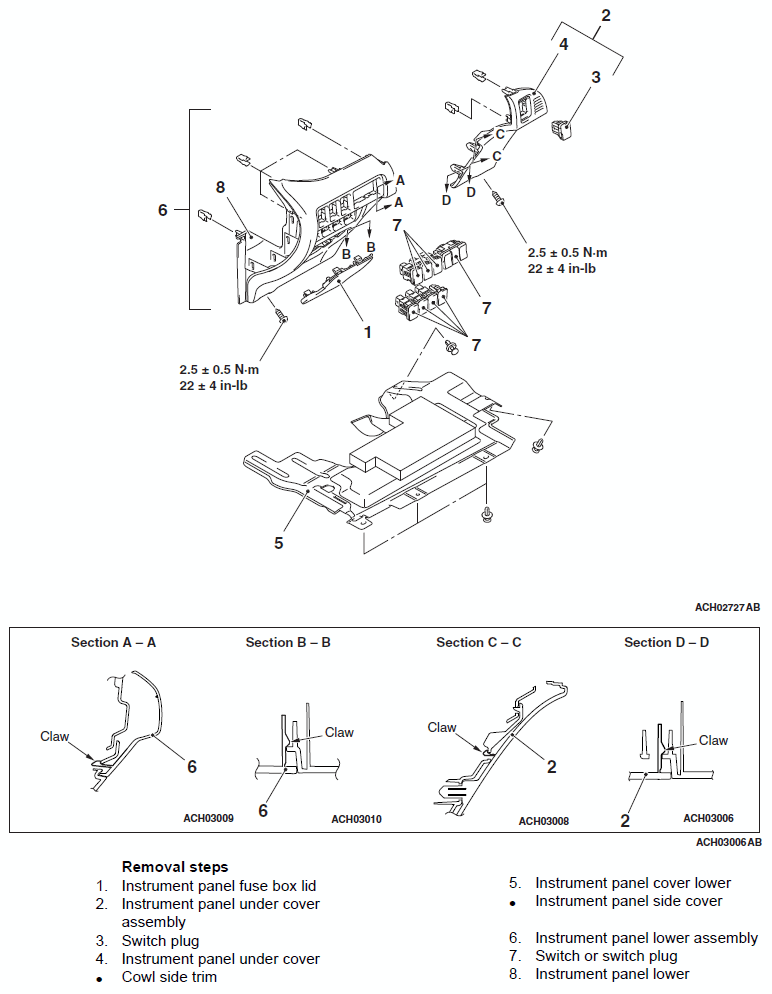

Fig 1: Instrument Lower Panel Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
