Home › Mitsubishi › 2018 › Mirage ES, Automatic CVT Trans › Repair and Diagnosis › Electrical › Component Locations › Grounding

Component Locations: Grounding

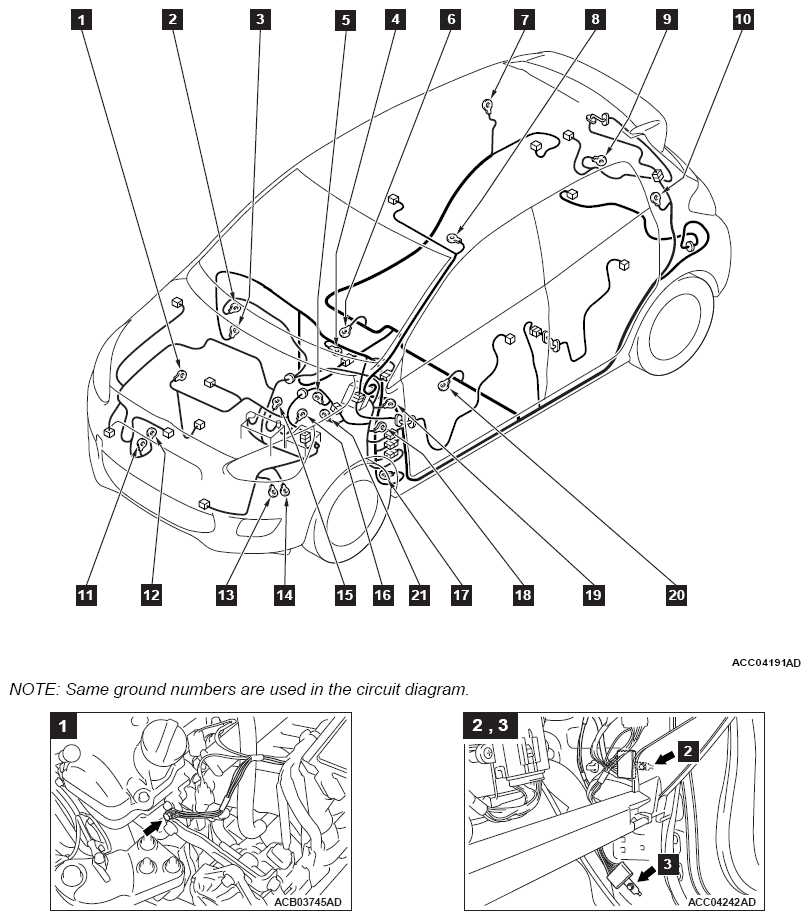

G12366173Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

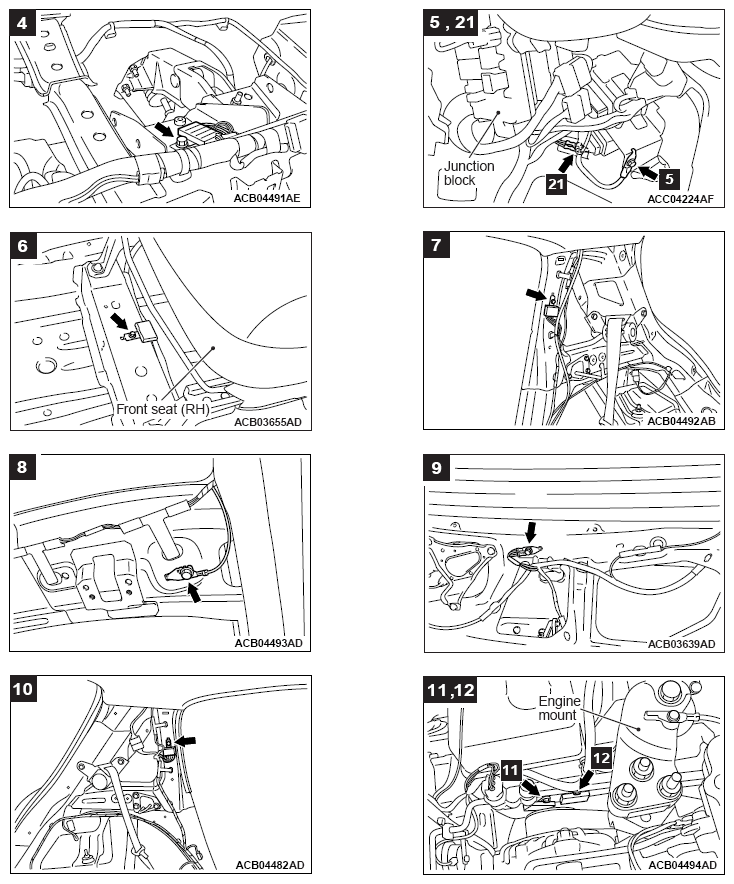

G12366174Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

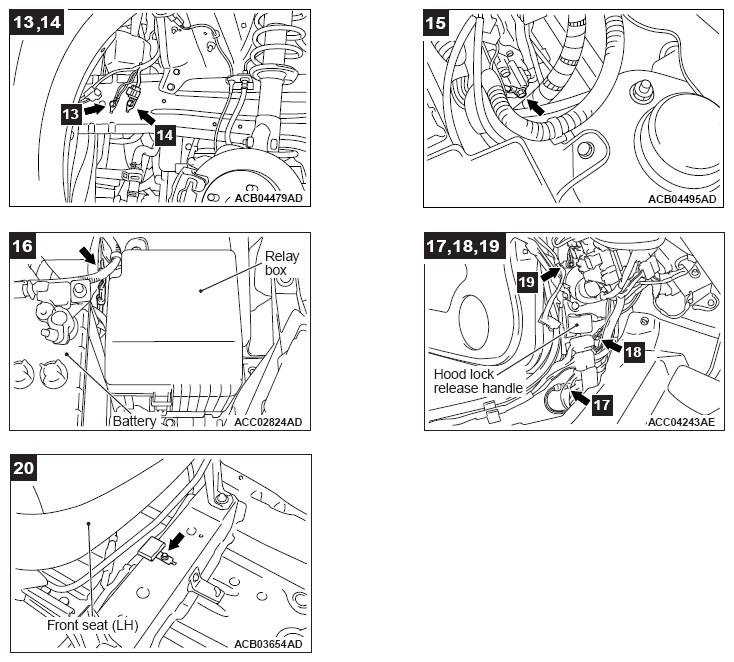

G12366175Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
