Removal And Installation: Notes

<M/T>

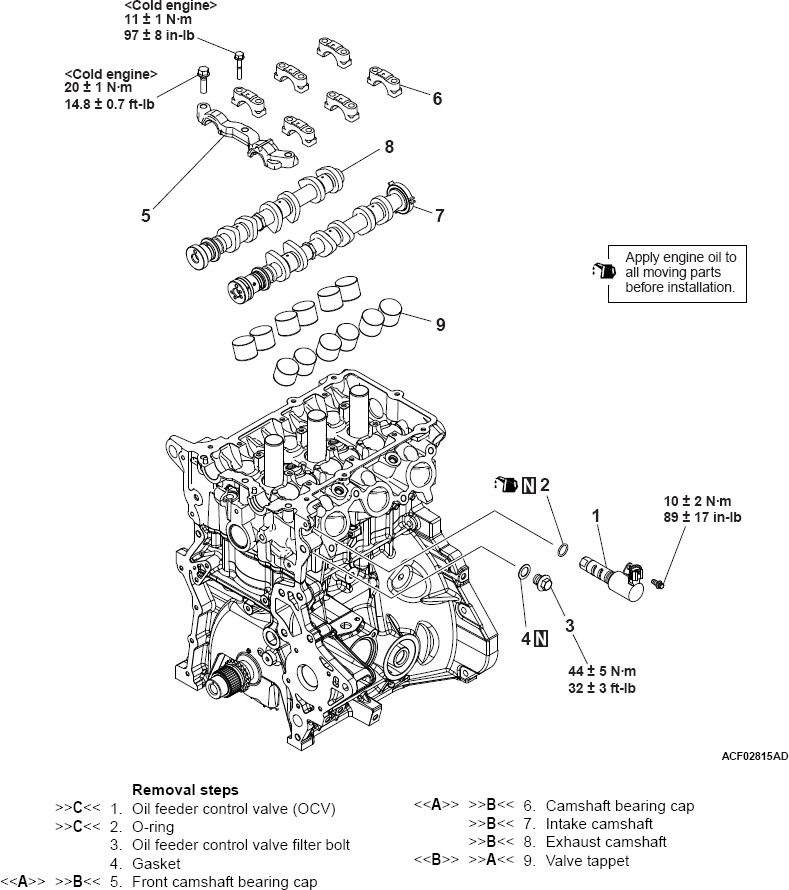

Fig 1: Removing/Installing Camshaft Components With Torque Specification (M/T)
G12358139Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<CVT>

Fig 2: Removing/Installing Camshaft Components With Torque Specification (CVT)
G12358140Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
