Removal And Installation: Notes

Pre-removal Operation  Drive Belt Removal (Refer to - CRANKSHAFT PULLEY ).

Post-installation Operation  Drive Belt Installation (Refer to - CRANKSHAFT PULLEY ).

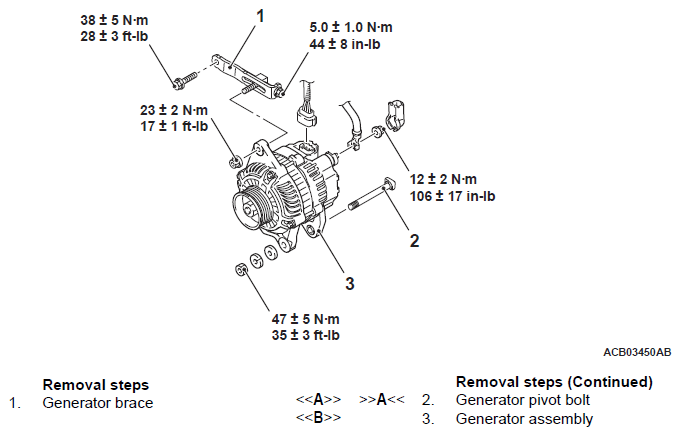

Fig 1: Removing/Installing Generator Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
