Removal And Installation: Notes

CAUTION:

• When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
• Do not reuse the manifold absolute pressure sensor that has been dropped.

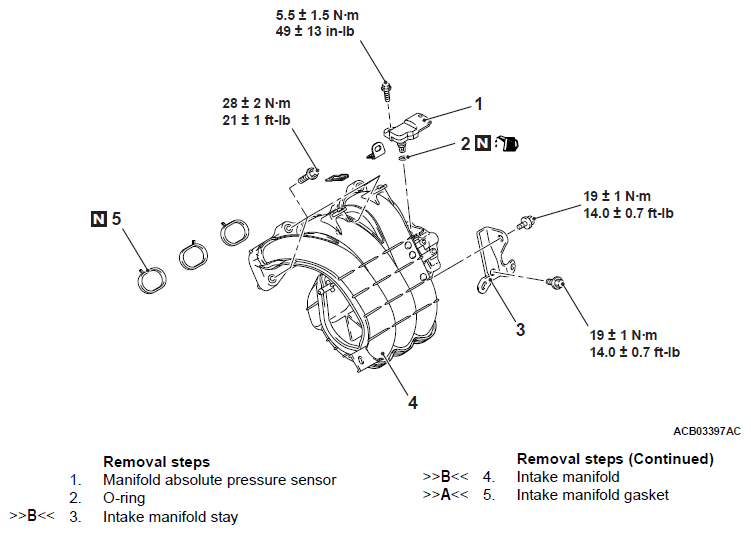

Fig 1: Intake Manifold Replacement Components Removal/Installation With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
