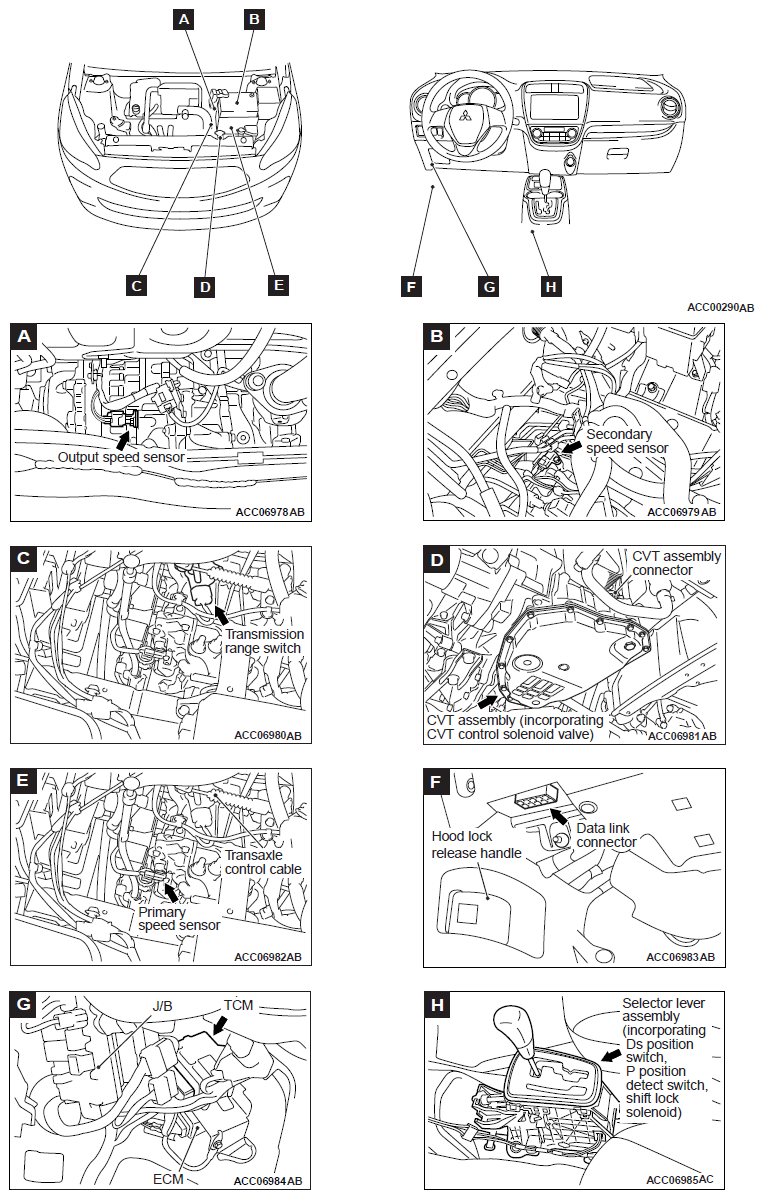

CVT Control Component Layout
| Name | Symbol |
|---|---|
| CVT assembly connector (Solenoid valve assembly, transmission fluid temperature sensor, secondary pressure sensor) | D |
| Primary pulley speed sensor | E |
| Data link connector | F |
| Secondary pulley speed sensor | B |
| Ds position switch | H |
| Shift lock solenoid | H |
| Output speed sensor | A |
| Transaxle control module (TCM) | G |
| P position detect switch | H |
| Transmission range switch | C |
