Removal And Installation: Notes

CAUTION:

When removing or installing the camshaft position sensor or crankshaft position sensor, be careful not to apply impact to the sensor.
Do not reuse the camshaft position sensor or crankshaft position sensor that has been dropped.

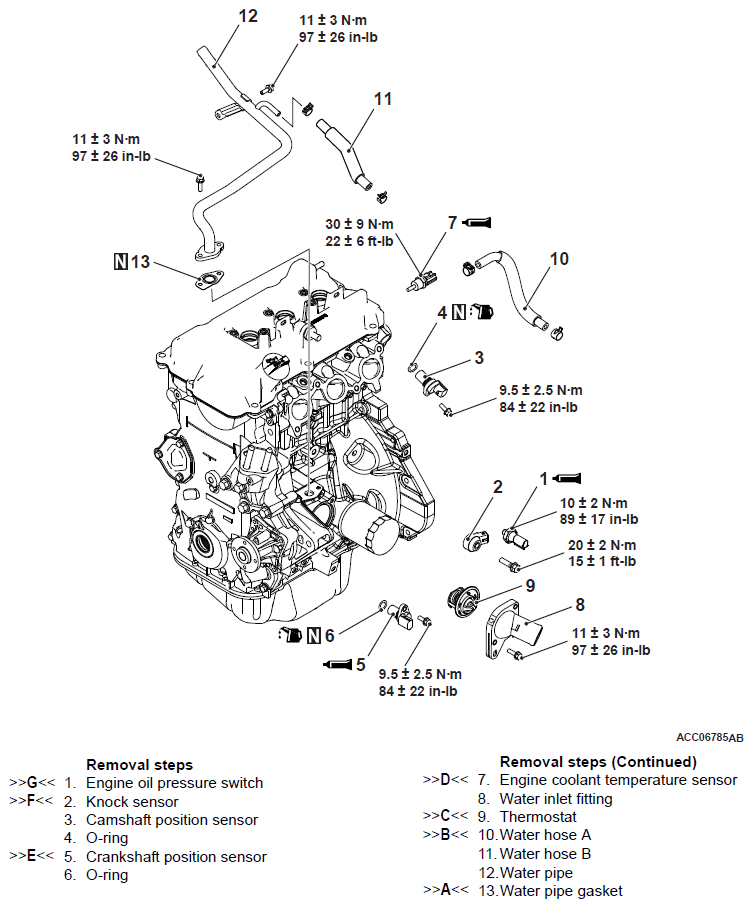

Fig 1: Removal/Installation Of Water Hose And Pipe Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
