Removal And Installation: Notes

Pre-removal operation  Under Cover Front Removal (Refer to Under Cover REMOVAL AND INSTALLATION ). Transmission Oil Draining (Refer to ON-VEHICLE SERVICE ). Starter Motor Assembly Removal (Refer to - STARTER MOTOR ASSEMBLY ). Drive Shaft Removal (Refer to - DRIVE SHAFT ASSEMBLY .) Air Cleaner Assembly Removal (Refer to - AIR CLEANER ). Battery and Battery Tray Removal (Refer to - REMOVAL AND INSTALLATION ).

Post-installation operation  Clutch Pedal Check And Adjustment (Refer to GENERAL INFORMATION ). Battery and Battery Tray Installation (Refer to - REMOVAL AND INSTALLATION ). Air Cleaner Assembly Installation (Refer to - AIR CLEANER ). Drive Shaft Installation (Refer to - DRIVE SHAFT ASSEMBLY ). Starter Motor Assembly Installation (Refer to - STARTER MOTOR ASSEMBLY ). Transmission Oil Refilling (Refer to ON-VEHICLE SERVICE ). Under Cover Front Installation (Refer to - Under Cover - REMOVAL AND INSTALLATION ).

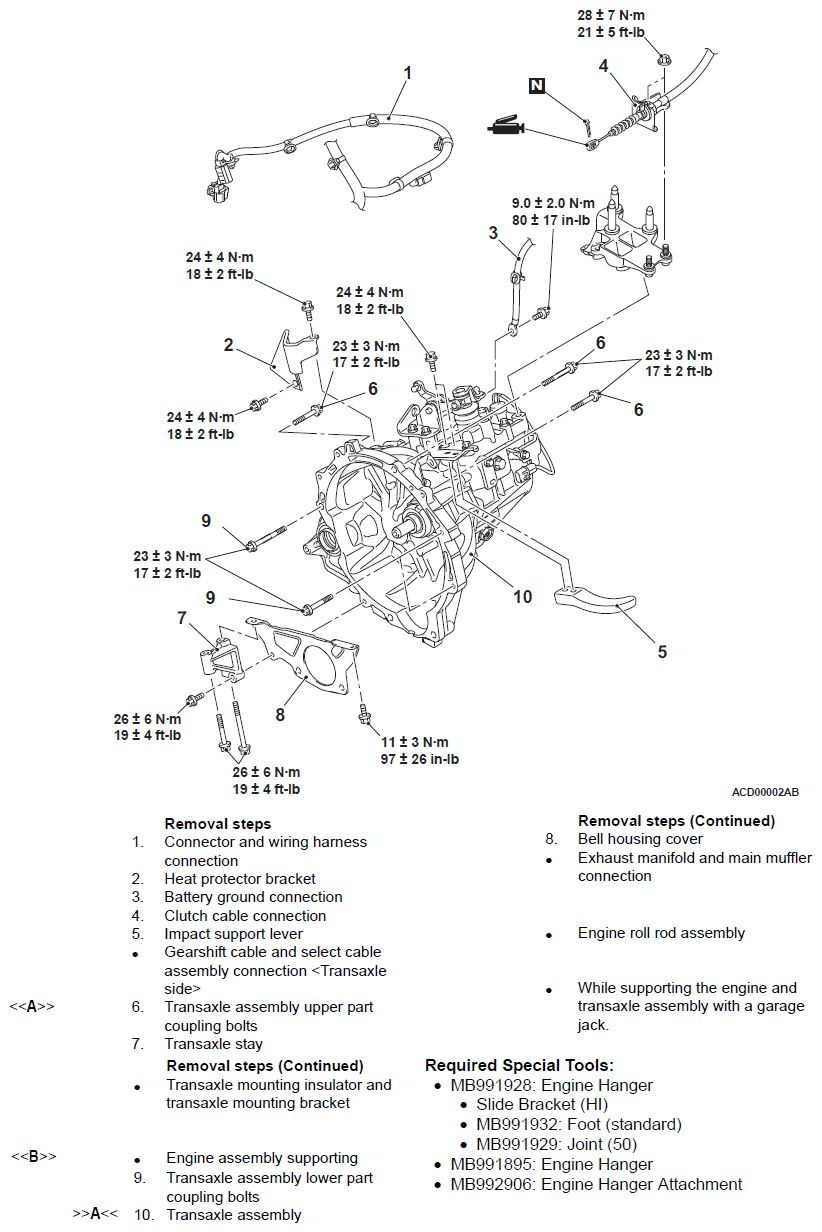

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
