Home › Mitsubishi › 2018 › Mirage SE › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Seat Assembly › Disassembly And Reassembly › Notes

Disassembly And Reassembly: Notes

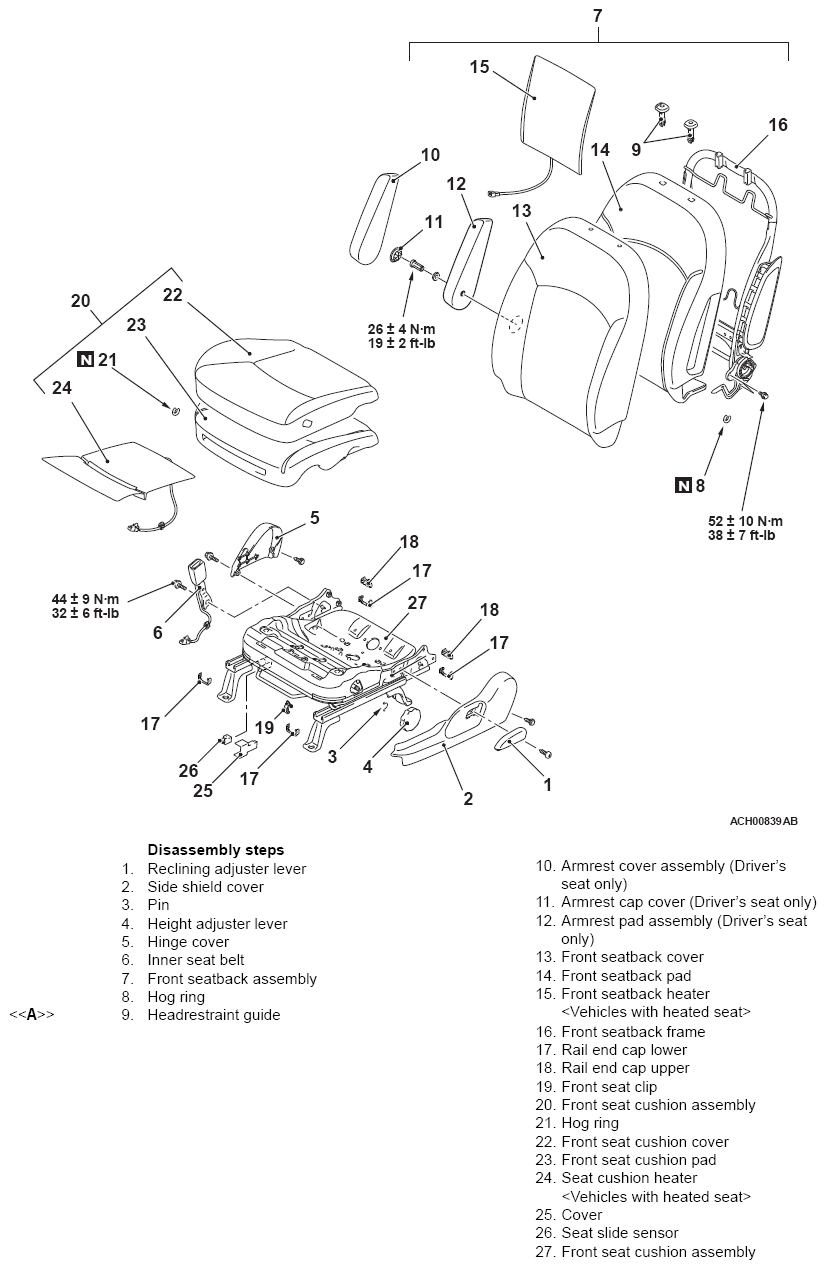

Fig 1: Disassembling/Assembling Front Seat Assembly Components With Torque Specification
G12363664Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
