REMOVAL AND INSTALLATION <3.0 L Engine>

CAUTION:

When the knock sensor replacement is performed, use scan tool (M.U.T.-III) to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

Pre-removal and Post-installation Operation

Intake Manifold Removal and Installation (Refer to REMOVAL AND INSTALLATION <3.0L ENGINE> ).

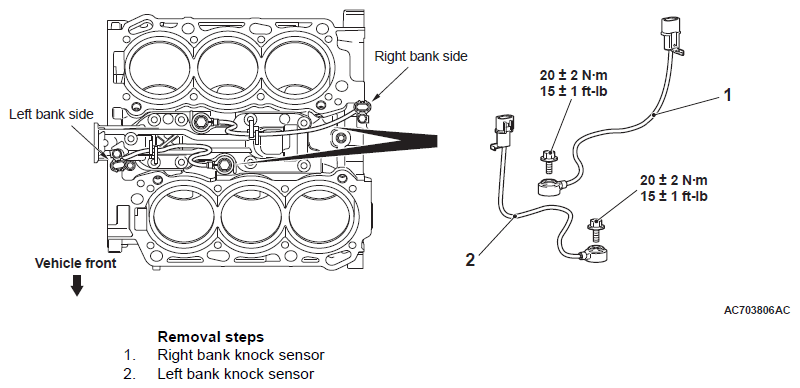

Fig 1: Removing/Installing Knock Sensor Components With Torque Specification - 3.0L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
