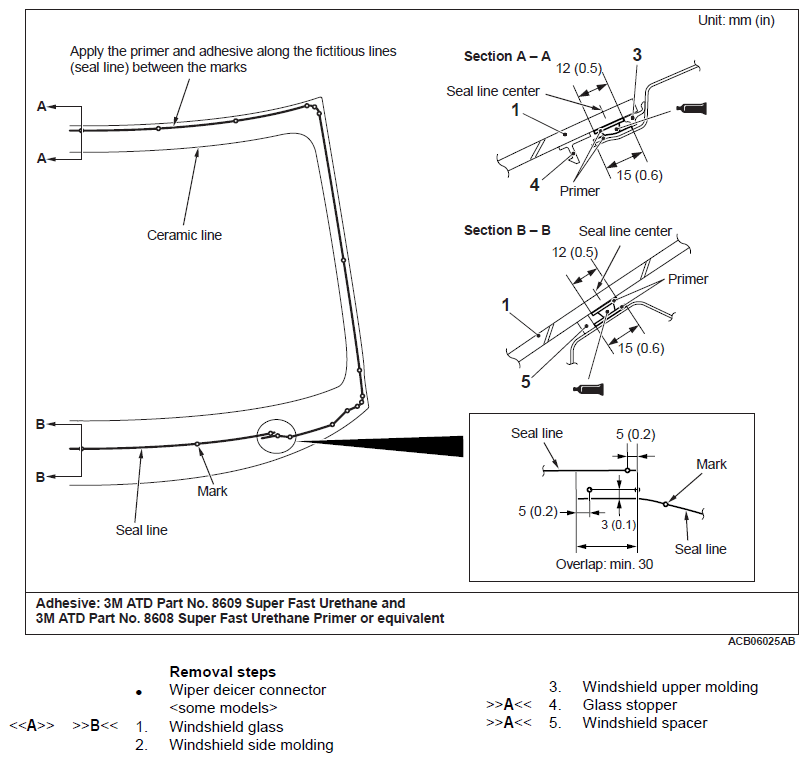

Removal And Installation: Notes

Pre-removal and post-installation operation  Front deck garnish removal and installation (Refer to WINDSHIELD WIPER .) Roof drip molding removal and installation (Refer to REMOVAL AND INSTALLATION .) Front pillar trim removal and installation (Refer to TRIMS .) Inside rear view mirror assembly removal and installation (Refer to INSIDE REAR VIEW MIRROR .) Lighting control sensor removal and installation <Vehicles with lighting control sensor> (Refer to LIGHTING CONTROL SENSOR <VEHICLES WITH LIGHTING CONTROL SENSOR> .) FCM/LDW/AHB-ECU Removal and Installation <Vehicles with FCM/LDW/AHB-ECU> (Refer to FCM/LDW/AHB-ECU .)
