Electrical Component Locations
›
Inspection Terminal
Inspection Terminal

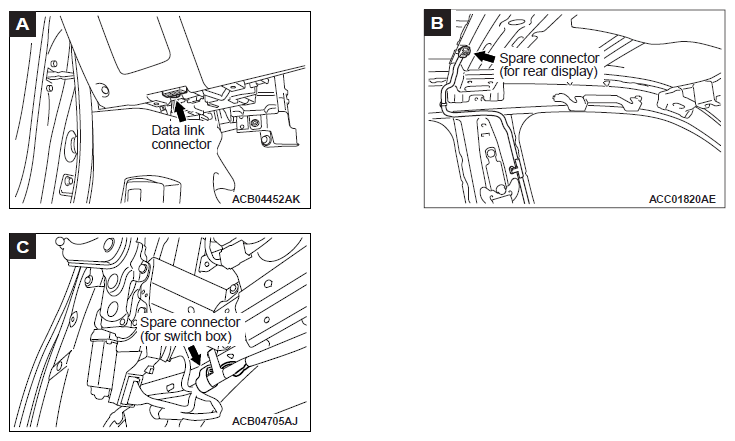

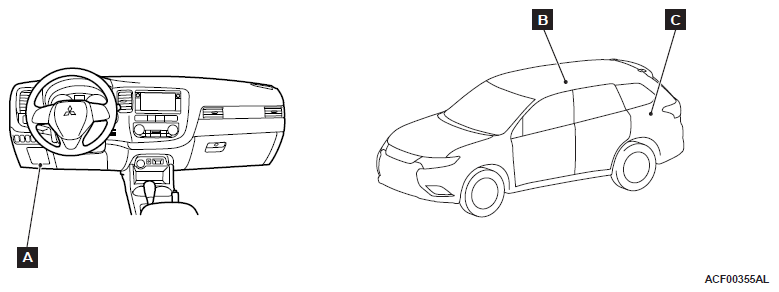

Name
Symbol
Data link connector
A
Spare connector (for rear display)
B
Spare connector (for switch box)
C
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
