Removal And Installation: Notes

Pre-removal and Post-installation Operation

• Engine Room Under Cover Front A, B Removal and Installation (Refer REMOVAL AND INSTALLATION ).
• Intake Manifold Stay Removal and Installation (Refer to INLET MANIFOLD ).

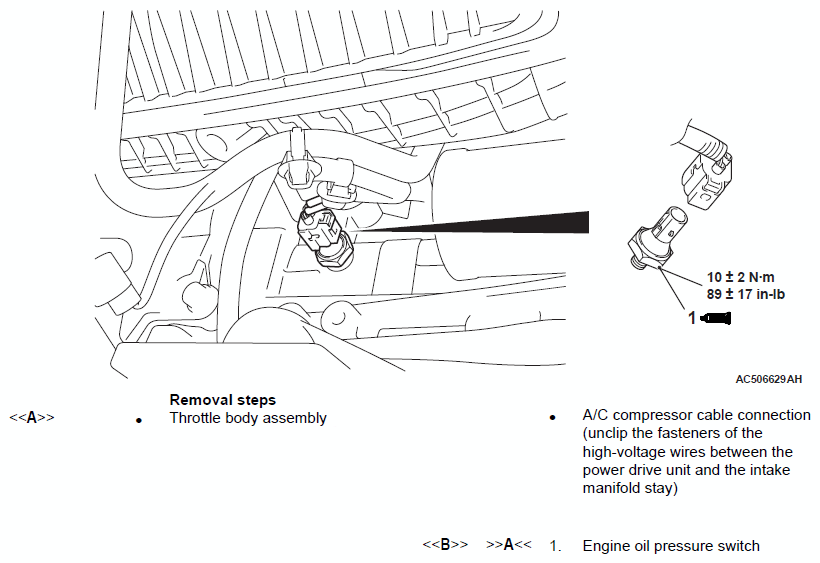

Fig 1: Removing/Installing Engine Oil Pressure Switch Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool  :

• MB992118: Oil Pressure Switch Wrench
