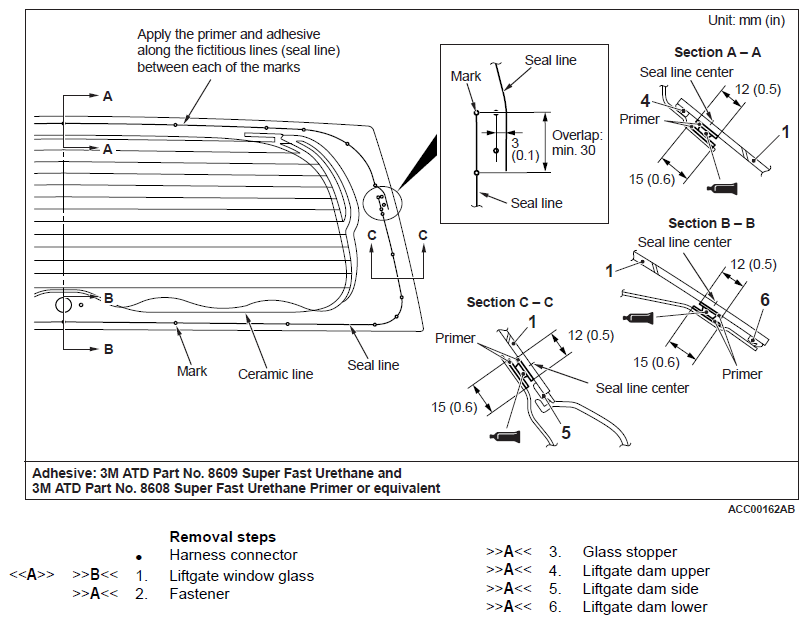

Removal And Installation: Notes

Pre-removal and post-installation operation  Rear wiper blade and arm assembly removal and installation (Refer to REAR WIPER AND WASHER .) Liftgate trim removal and installation (Refer to LIFTGATE TRIM .)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
