Notes
Removal And Installation: Notes
Pre-removal and post-installation operation
Quarter trim upper removal and installation. Refer to
TRIM
.

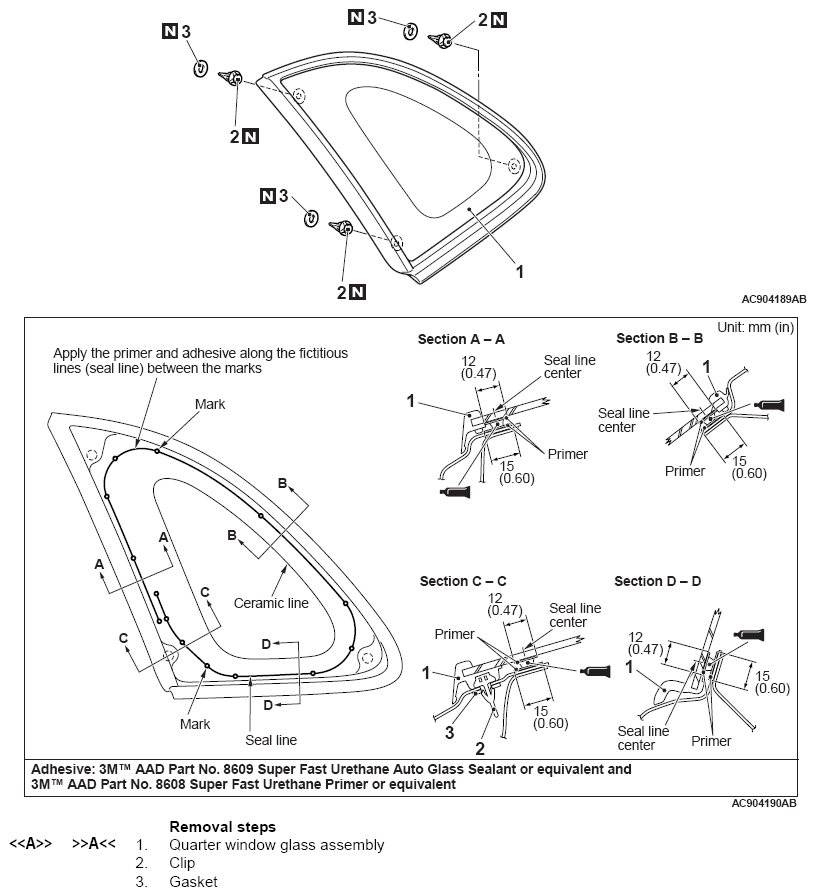

Fig 1: Removing/Installing Quarter Window Glass Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
