Disassembly And Assembly: Notes

CAUTION:

• As for the outboard joint assembly, only the outboard joint boot can be replaceable, and other parts cannot be disassembled.
• The outboard joint boot for FWD-RH is not replaceable.

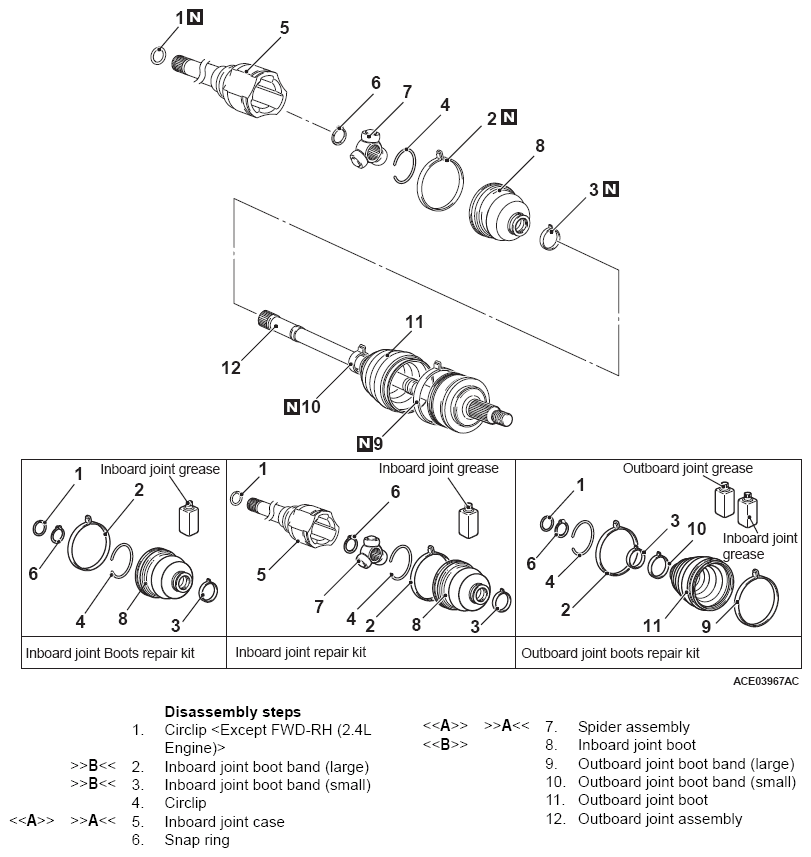

Fig 1: Disassembling And Assembling Driveshaft Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
