Engine Compartment
Engine Compartment

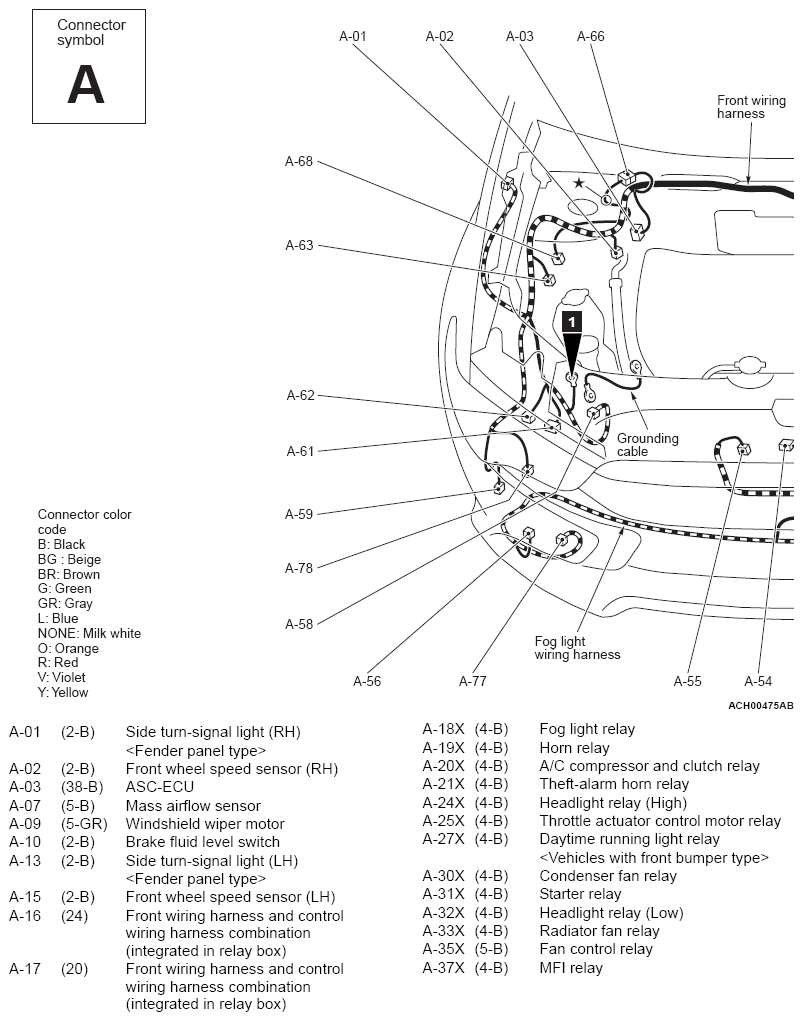

Fig 1: Engine Compartment Configuration Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

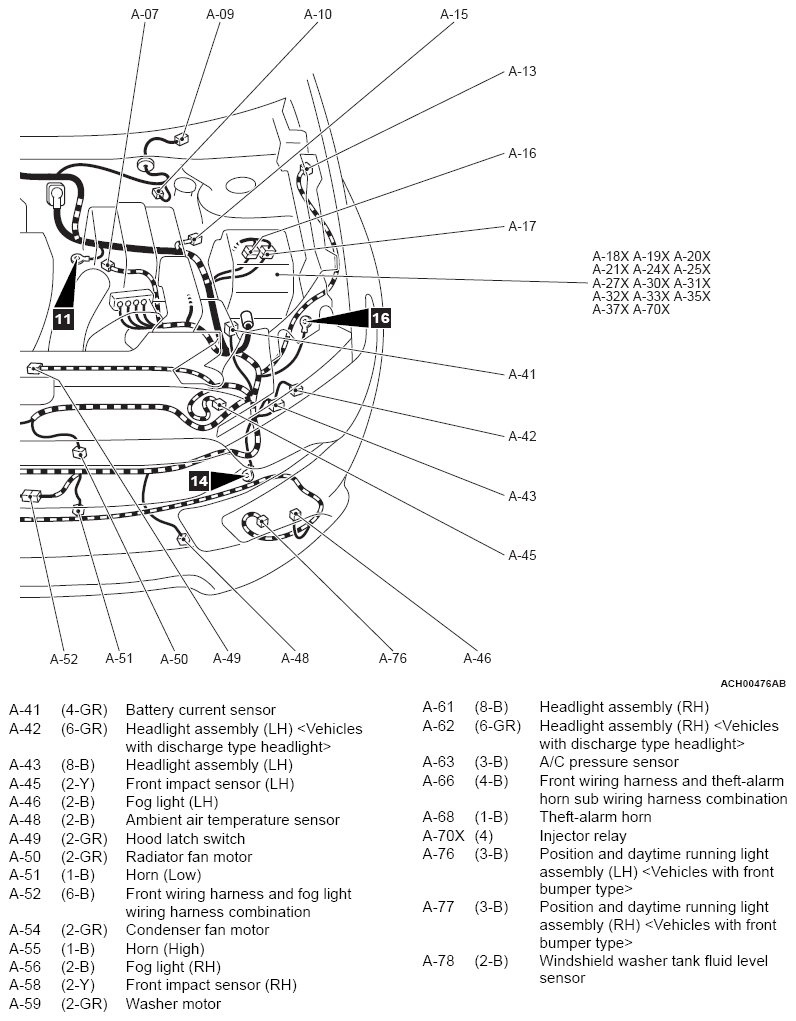

Fig 2: Engine Compartment Configuration Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
