Configuration Diagrams: Liftgate

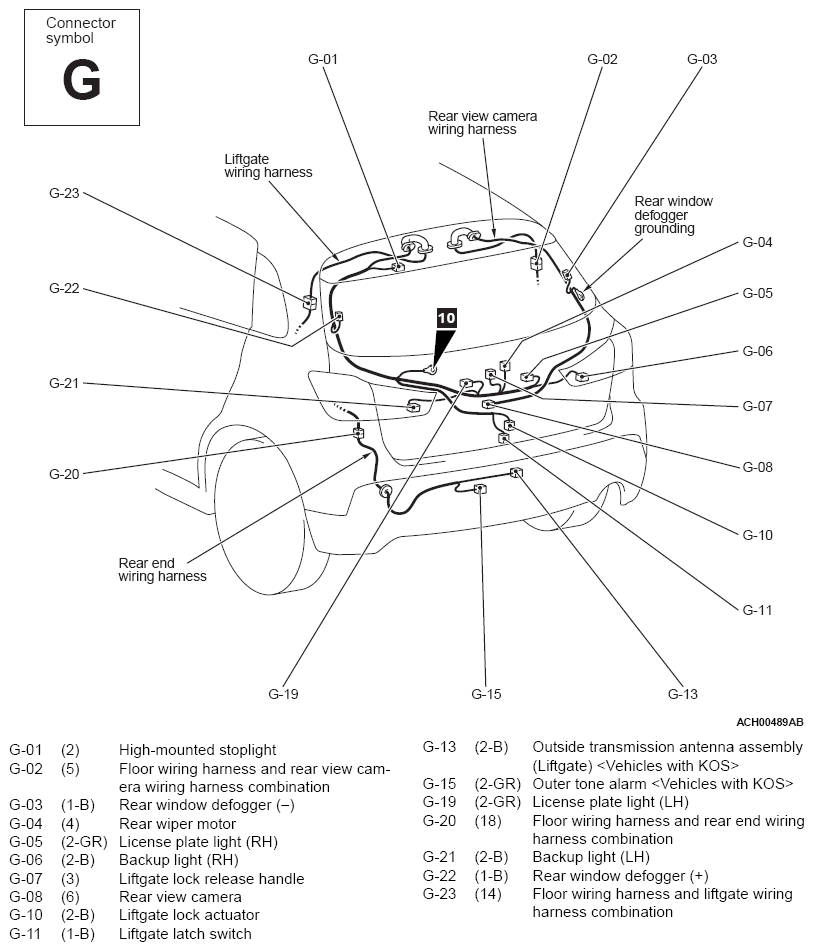

Fig 1: Liftgate Configuration Diagram
G12162256Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
