Splice Locations: Liftgate

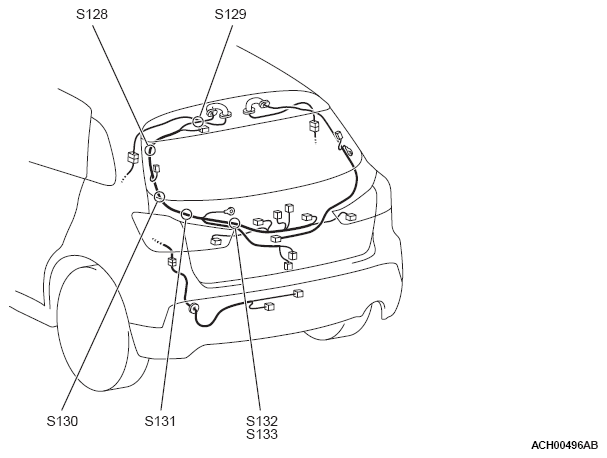

Fig 1: Liftgate Harness Connector Locations
G12162267Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
