Removal And Installation: Notes

Pre-removal Operation  Drive Belt Removal (Refer to CRANKSHAFT PULLEY ) <2.0L ENGINE>. Drive Belt Removal (Refer to CRANKSHAFT PULLEY ) <2.4L ENGINE>.

Post-installation Operation  Drive Belt Installation (Refer to CRANKSHAFT PULLEY ) <2.0L ENGINE>. Drive Belt Installation (Refer to CRANKSHAFT PULLEY ) <2.4L ENGINE>. Drive Belt Tension Check (Refer to DRIVE BELT TENSION CHECK ) <2.0L ENGINE>. Drive Belt Tension Check (Refer to DRIVE BELT TENSION CHECK ) <2.4L ENGINE>.

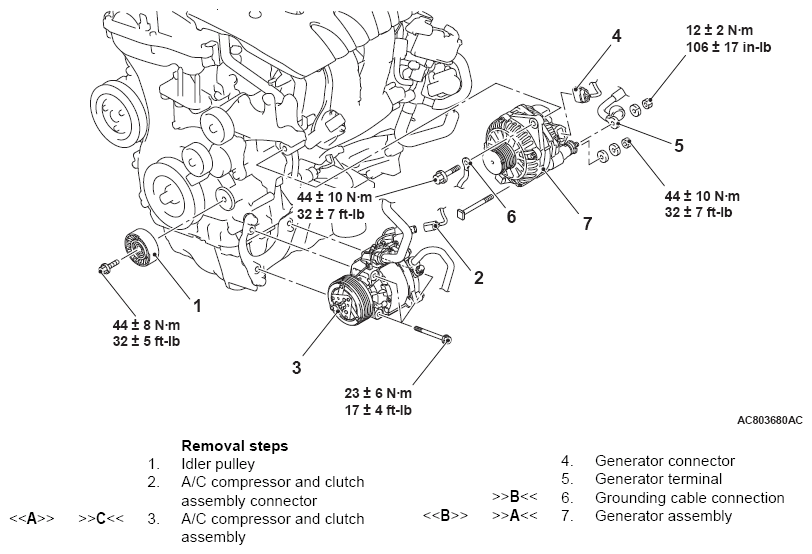

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
