Home › Mitsubishi › 2018 › RVR ES › Repair and Diagnosis › Electrical › Starter › Starting System › Starter Motor Assembly › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

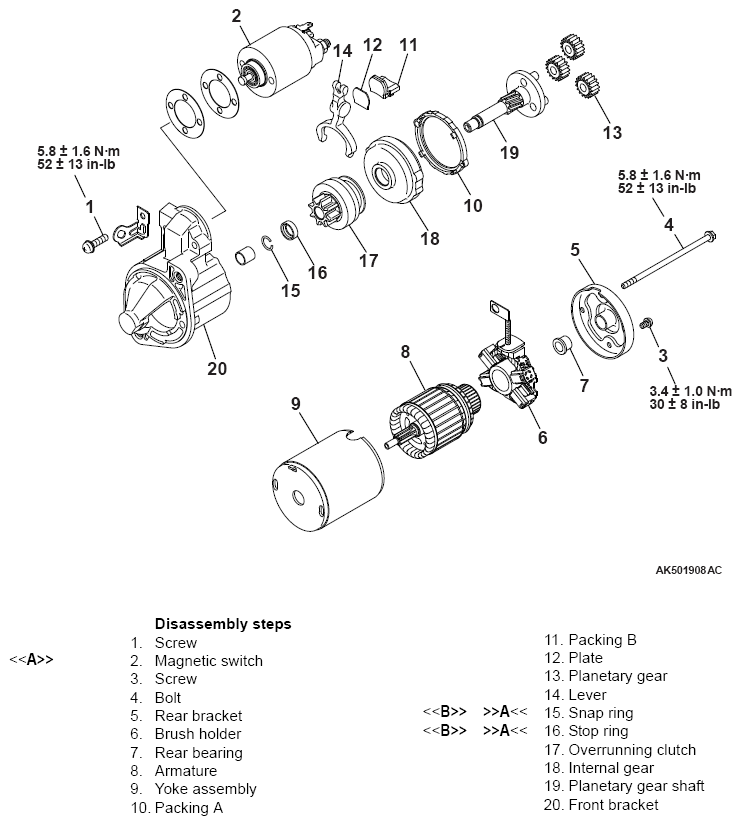

Fig 1: Disassembling And Assembling Starter Motor Assembly Components With Torque Specification
G12158059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
