Removal And Installation: Notes

Pre-removal and post-installation operation

• Rear wiper blade and wiper arm assembly removal and installation. Refer to REAR WIPER AND WASHER .
• Liftgate spoiler assembly removal and installation. Refer to REMOVAL AND INSTALLATION .
• Liftgate trim removal and installation. Refer to LIFTGATE TRIM .

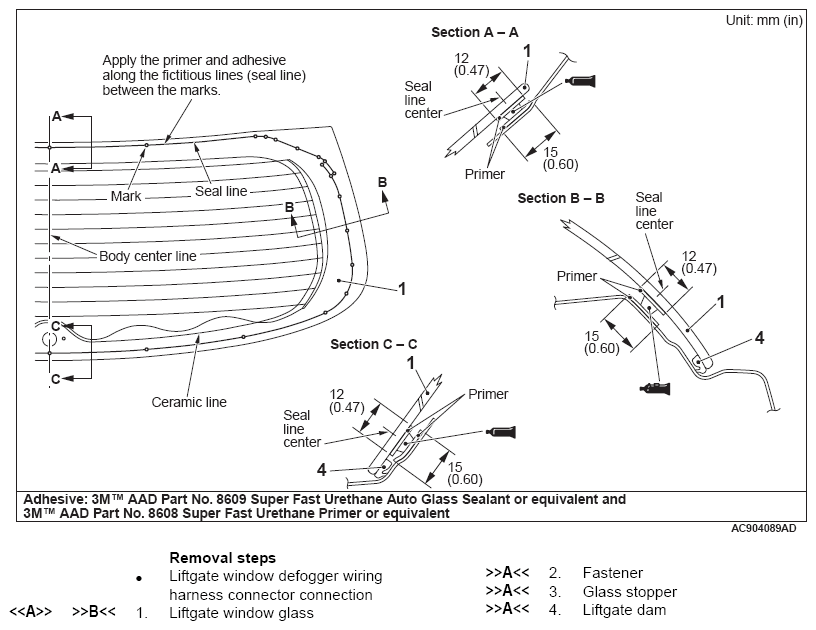

Fig 1: Removing/Installing Liftgate Window Glass Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Removing/Installing Liftgate Window Glass Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
