Fuel Tank Temperature Sensor Check

  1. Remove the rear seat assembly (Refer to REAR SEAT ASSEMBLY ), and turn up the floor carpet.
  2. Remove the floor inspection lid (LH).
    G10222593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

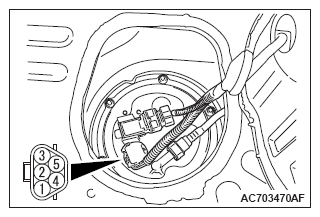

  3. Disconnect the fuel pump module connector.
    G05430938Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Measure the resistance between connector terminals No. 1 and No. 3 of the fuel pump module (incorporating fuel tank temperature sensor).

    Standard value: 0.43 - 12.3 kΩ

    (at -10 - 70°C (14 - 158°F))

  5. If not within the standard value, replace the fuel level sensor and fuel tank temperature sensor (Refer to DISASSEMBLY AND ASSEMBLY ).
  6. Connect the fuel pump module connector.
  7. Install the inspection lid.
  8. Return the floor carpet to the original condition and install the rear seat assembly (Refer to REAR SEAT ASSEMBLY ).
    G10222958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
