Notes
Removal And Installation: Notes

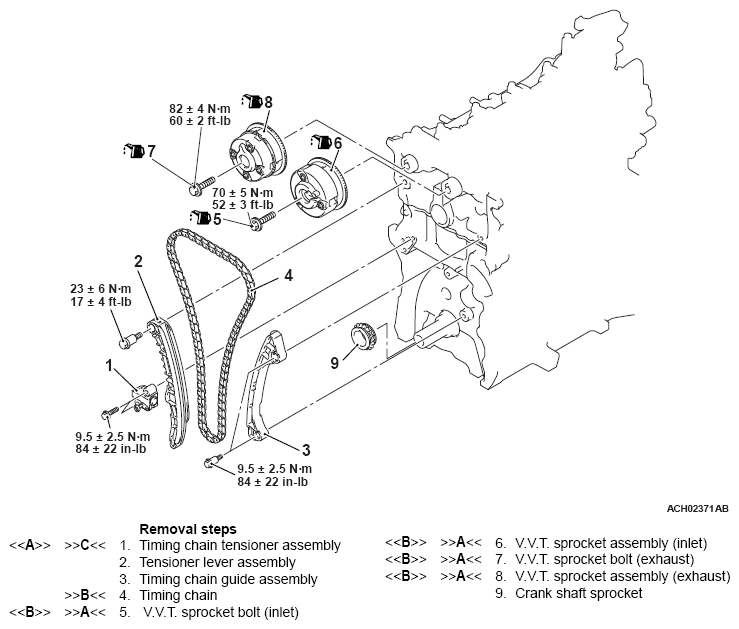

Fig 1: Removing/Installing Timing Chain Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
