Home › Mitsubishi › 2019 › Eclipse Cross LE › Repair and Diagnosis › Engine Performance › Wiring Diagrams › Circuit Diagrams › Spotlight

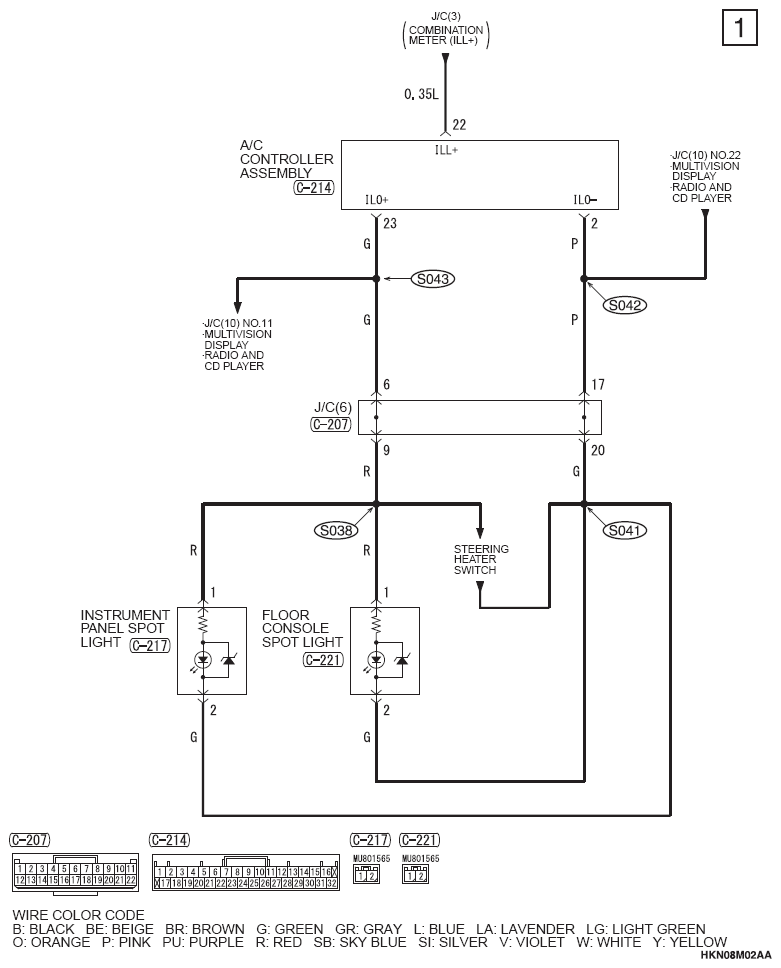

Circuit Diagrams: Spotlight

G12651460Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
